PMMA tubular enclosure provides IP69K protection
Datasensor presents the SG-IP69K PMMA Tubular Enclosure for IP69K protection accessory.

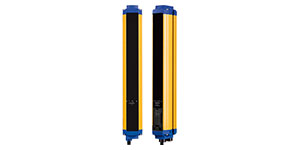

SG-IP69K accessory is a PMMA acrylic tube used to protect and seal the safety light curtains of SG2, SG4 and SG body compact series.
Using the SG-IP69K accessory, the IP protection of the safety light curtain is increased from IP65 to IP67, IP68 and IP69K.
The Gore-Tex membrane on the caps prevents water or dirt entering as well as internal condensation.
The connection cable for the light curtain is protected and kept in its place by a M16 metric chock that prevents the entry of water or dirt.
The particular technologies adopted to design the two internal adapters guarantee simple and quick mounting of all the profiles of the safety light curtains of SG2, SG4 and SG body compact series.
Two stainless-steel rotating brackets, to be mounted on the product caps, are supplied and guarantee quick and easy installation.
The PMMA Acrylic tube, thanks to its mechanical characteristics, avoids the deterioration of the light curtain’s effective aperture angle (EAA) to guarantee alignment ease.
