CONTACTLESS GIGABIT ETHERNET TRANSMISSION Slip Ring SR160 with integrated Sendix Encoder

Kubler 4/16/2018

SR160 Slip RingAll in one device. Two separate channels 100 Mbps Ethernet or one channel 1 Gbps Ethernet allow transmitting in parallel loads up to 40 A. Media, switching signals or fieldbuses can be freely combined and are transmitted durably and maintenance-free thanks to reliable technologies. The integration of our Sendix encoders provides additional position information.

SR160 Benefits

Slip rings take over the rotating transmission of currents, signals, or data between stationary and rotating platforms. Slip rings must be reliable despite their exposure to harsh environments.The SR160 slip ring is suited for these applications: fairground rides, filling systems, labeling machines, sealing machines, automatic revolving transfer machines, construction machinery.

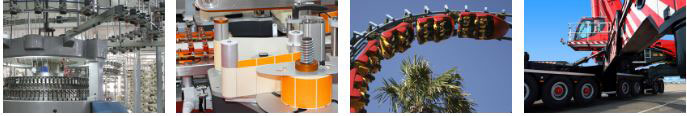

SR160 Applications
