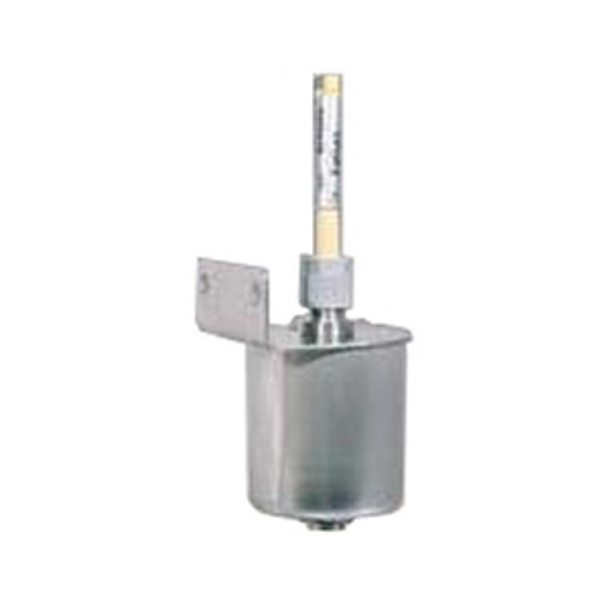

0111-509 Barksdale Bilge Guard Level Switch

0111-509
Request for Quote
  • Approval: ATEX, BV, GL
  • Contact Configuration: SPST
  • Contact Voltage Rating: 230 VAC/DC
  • Enclosure: IP67/68
  • Float Size: 33 mm
  • Float Type: Polyethylene
  • Material: Polyamide (Cap Nut), Stainless Steel (Stem/Bracket/Float Chamber)
  • Mounting: Vertical
  • Operating Temperature: -20 to 70°C
  • Power Rating: 40 Volt Amp
  • Product Type: Level Switch

Barksdale UNS-VA/SB4 Series Bilge Guard Level Switch, 230 VAC/VDC, 2 A, 40 VA, SPST, 33 MM Polyethylene Float, Stainless Steel Stem/Bracket/Float Chamber, Polyamide Cap Nut, Vertical Mount, Fuel and Oil Tank, Bilge Guard Level Switch.

Browse All Barksdale Products

QTY

Contact Our Process Control Experts

Contact our experts to answer questions or help you with your application needs.

Services

  • Distribution of components services
  • On-site inventory management
  • Factory Automation Services
  • Product expediting
  • Product obsolescence notifications and replacements
  • Kitting and packaging
  • Custom labeling

Product Description

Bilge Guard Level Switch; Type Fuel and Oil Tank; Power Rating 40 Volt Amp; Contact Voltage Rating 230 Volt AC/DC; Contact Configuration SPST; Float Type Polyethylene; Float Size 33 Millimeter; Material Stainless Steel (Stem/Bracket/Float Chamber), Polyamide (Cap Nut); Mounting Vertical; Operating Temperature -20 to 70 Deg C; Enclosure IP67/68; Approval GL, BV, ATEX; Current Rating 2 Amp; Pressure Rating 3 Bar; Electrical Connection Polymer Cable; Specific Gravity 0.8 Gram per Cubic Centimeter; Mounting Element Bracket; Includes 2 Meter Polymer Cable; Application Shipbuilding and Offshore, Sewage Work, Yacht Building, Ballast Container, Fuel and Oil Tank, Service and Waste Water

Features/Benefits

Rugged and sturdy design for bilge monitoring; Compact construction; Established principle; Reliable
