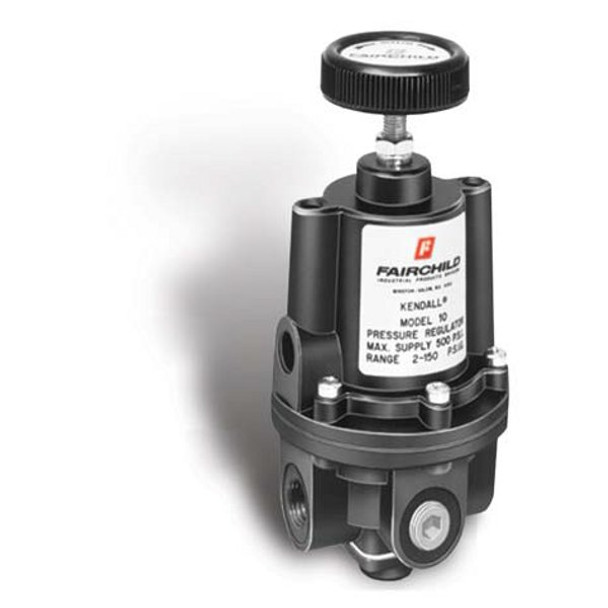

10214C Fairchild Model 10C Check Valve Pneumatic Precision Regulator

Image may represent a range of products. Product may vary based on listed specifications.

Rotork Fairchild Products M10C, Pressure Regulator, 0-2 psig adj, 250 psig max, 40 SCFM at 100 psig, Aluminum body/housing, Buna-N on Dacron diaphragm, Brass & Zn-plated steel trim, 1/2 FPT ports, two 1/4 FPT gauge ports, check valve. Use 09921 mounting bracket.

  • Manufacturer: Fairchild Products
  • DOCS_Fairchild CRN Numbers: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/fairchild-crn-numbers-2010.pdf
  • DOCS_Fairchild Model 10 IOM Instructions: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/fairchild-model-m10-pneumatic-precision-regulator-20007-manual.pdf
  • Accuracy: 0.10 psi
  • Ambient Temperature: -40° to 200 °F (-40° to 93.3 °C)
  • Base Model: 10214
  • Body Material: Aluminum
  • Elastomer: Nitrile on Dacron
  • Exhaust Capacity: 5.5 SCFM [9.36m3/Hr] where downstream pressure is 5 psi above 20 psi setpoint
  • Exhaust Type: Straight (standard)
  • Flow Capacity: 40 SCFM
  • Mounting: Wall (09921 Bracket Available)
  • Operator: Knob (standard) 1-7/8 in. O.D.
  • Options: [C] check valve
  • Pipe Size: 1/2 FNPT
  • Pressure Range: 0 to 2 psi
  • Product Type: Precision Pressure Regulators
  • Sensitivity: 1/8 in. W.C.
  • Supply Pressure: 500 psi
  • Trim: Zinc-Plated Steel Brass
  • DOCS_Fairchild Model 10 Pneumatic Precision Regulator Datasheet: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/fairchild-model-m10-pneumatic-precision-regulator-2016-datasheet.pdf
  • DOCS_Fairchild Safety Guide: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/fairchild-safety-guide-2010.pdf
  • Product Family: Model 10
  • Product Category: Regulators
  • DOCS_Fairchild Pneumatic Pressure Regulator Product Matrix: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/rotork-fairchild-pneumatic-pressure-regulators-catalog.pdf
  • Regulator Type: Precision Pressure Regulator

10214C
