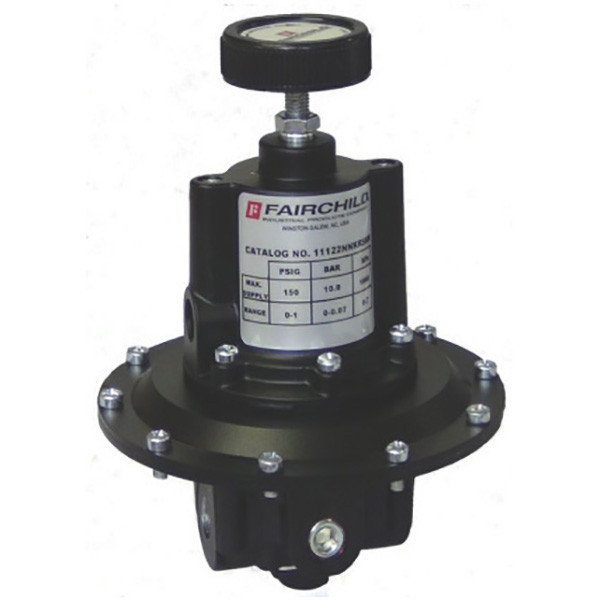

Fairchild Pneumatic Low Pressure Regulator

11152NJKREB
$374.30 / EA
  • Product Type: High Precision Regulator, Low Pressure Regulator
  • Manufacturer: Fairchild
  • Product Family: Model 11
  • Adjustment Type: Knob
  • Air Consumption: 20 SCFM at 100 PSIG (Flow), 0.5 SCFM (Exhaust)
  • Body Material: Aluminum
  • Diaphragm Material: Fluorocarbon
  • End Connection: NPTF Threaded x NPTF Threaded
  • Inlet Pressure: 150 PSIG
  • Mounting Hole Diameter: (2) 1/4 in.-20 UNC
  • Outlet Pressure: 0 to 12 PSI
  • Port Size: 1/4 in-18 TPI x 1/4 in-18 TPI
  • Size: 5-1/4 in. Diam. x 6-1/2 in. H
  • Temperature Rating: -40 to 200 Deg F (Ambient)
11152NJKREB Fairchild Pneumatic Precision Low Pressure Regulator, 1/4"-18 NPTF Port, 0 to 12 PSI, Aluminum, Fluorocarbon Diaphragm, Bonnet Mount, Knob Adjustment, Relieving, Normal Bleed, Pneumatic Precision Low Pressure Regulator with Tapped Exhaust Vent.
QTY

Contact Our Process Control Experts

Contact our experts to answer questions or help you with your application needs.

Services

  • Distribution of components services
  • On-site inventory management
  • Factory Automation Services
  • Product expediting
  • Product obsolescence notifications and replacements
  • Kitting and packaging
  • Custom labeling

Product Description

Pneumatic Precision Low Pressure Regulator; Type Relieving, Normal Bleed; Adjustment Type Knob; Port Size 1/4 Inch-18 TPI x 1/4 Inch-18 TPI; End Connection NPTF Threaded x NPTF Threaded; Size 5-1/4 Inch Diameter x 6-1/2 Inch Height; Mounting Hole Diameter (2) 1/4 Inch-20 UNC; Body Material Aluminum; Diaphragm Material Fluorocarbon; Air Consumption 20 SCFM at 100 PSIG (Flow), 0.5 SCFM (Exhaust); Inlet Pressure 150 PSIG; Outlet Pressure 0 to 12 PSI; Temperature Rating -40 to 200 Deg F (Ambient); Gauge Port Size 1/4 Inch-18 NPTF Threaded or 1/4 Inch-19 TPI BSPT Threaded; Supply Pressure Effect 0.01 PSIG; Sensitivity 0.05 Inch WC; Mounting Type 2 Inch x 1/4 Inch-20 UNC Bonnet Mount; Includes Zinc Plated Steel/Stainless Steel Trim, Tapped Exhaust Vent

FEATURES

Pneumatic Precision Low Pressure Regulator; Type Relieving, Normal Bleed; Adjustment Type Knob; Port Size 1/4 Inch-18 TPI x 1/4 Inch-18 TPI; End Connection NPTF Threaded x NPTF Threaded; Size 5-1/4 Inch Diameter x 6-1/2 Inch Height; Mounting Hole Diameter (2) 1/4 Inch-20 UNC; Body Material Aluminum; Diaphragm Material Fluorocarbon; Air Consumption 20 SCFM at 100 PSIG (Flow), 0.5 SCFM (Exhaust); Inlet Pressure 150 PSIG; Outlet Pressure 0 to 12 PSI; Temperature Rating -40 to 200 Deg F (Ambient); Gauge Port Size 1/4 Inch-18 NPTF Threaded or 1/4 Inch-19 TPI BSPT Threaded; Supply Pressure Effect 0.01 PSIG; Sensitivity 0.05 Inch WC; Mounting Type 2 Inch x 1/4 Inch-20 UNC Bonnet Mount; Includes Zinc Plated Steel/Stainless Steel Trim, Tapped Exhaust Vent

Series/Model Info

The Fairchild Model 11 is a Low Pressure Precision Pressure Regulator designed for applications that require high performance and accurate process control at very low pressures down to 3 inches water column. The Fairchild Model 11 pneumatic low pressure regulator features control sensitivity of less than 0.05" water column and high flow capacity to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure changes or conditions. Fairchild Manufacturers a complete line of precision pneumatic Regulators including positive pressure, back pressure and vacuum models. Quality intelligence and manufacturing excellence assures that our pressure regulators meet all the requirements of a precision device. Our large selection of pressure ranges and flow capacities lets you select the model that models that meet your needs for instrument of general industrial control applications.

Dimension Drawing

fairchild pax1 model 11 dimensions
