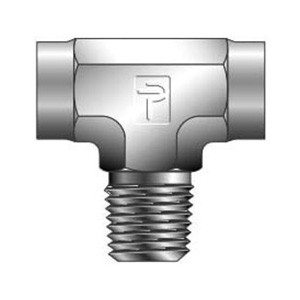

12-12-12 MBT-SS Parker Tee Fitting

12-12-12 MBT-SS
Request for Quote
  • End Connection: Male Threaded x Female Threaded x Female Threaded
  • Material: 316 Stainless Steel
  • Material Specification: ASME SA182 316/BS970 316-S31/DIN 4401
  • Nominal Size: 3/4 in. x 3/4 in. x 3/4 in.
  • Pressure Rating: 3500 PSI
  • Process: Close Grain Forging
  • Application: Air System, Chemical and Waste System, General Industrial System, Lubricating System
Parker Instrumentation MBT Series Tee Fitting, 3/4" x 3/4" x 3/4", MPT x FPT x FPT, 3500 PSI, Close Grain Forging, 316 Stainless Steel, Straight, Tee.
QTY

Contact Our Process Control Experts

Contact our experts to answer questions or help you with your application needs.

Services

  • Distribution of components services
  • On-site inventory management
  • Factory Automation Services
  • Product expediting
  • Product obsolescence notifications and replacements
  • Kitting and packaging
  • Custom labeling

Product Description

Tee Fitting; Type Straight; Nominal Size 3/4 Inch x 3/4 Inch x 3/4 Inch; End Connection Male Threaded x Female Threaded x Female Threaded; Material 316 Stainless Steel; Material Specification ASME SA182 316/BS970 316-S31/DIN 4401; Process Close Grain Forging; Pressure Rating 3500 PSI; Application Lubricating System, General Industrial System, Air System, Chemical and Waste System; Hex Size 1-5/16 Inch

Features/Benefits

Packaged in Sealed Boxes for Cleanliness; Rolled Male Thread for Extra Strength; Straight Bodies Machined from Applicable ASTM Bar Stock Specification; Shapes Machined from Close Grain Forgings; All Exposed Thread Protected to Prevent Damage

Series Information

Parker's Pipe Fittings deliver superior performance in pressures up to 10,000 psi. These instrumentation quality pipe fittings were developed to meet both ANSI B31.1 and ANSI B1 specifications for higher pressure and temperature service. These pipe fittings offer the installer the ability to directly connect to tubing with NPT to tube Tube fitting connections (for example, male connectors), thus eliminating an extra connection.

Additional Product Information

Tee Fitting; Type Straight; Nominal Size 3/4 Inch x 3/4 Inch x 3/4 Inch; End Connection Male Threaded x Female Threaded x Female Threaded; Material 316 Stainless Steel; Material Specification ASME SA182 316/BS970 316-S31/DIN 4401; Process Close Grain Forging; Pressure Rating 3500 PSI; Application Lubricating System, General Industrial System, Air System, Chemical and Waste System; Hex Size 1-5/16 Inch
