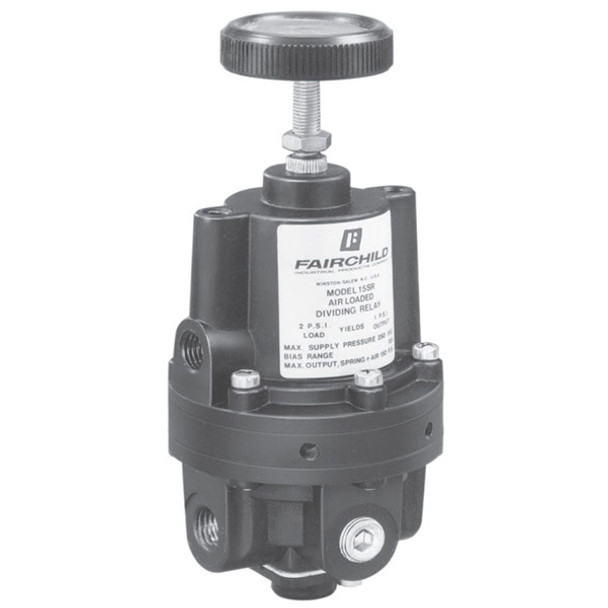

Fairchild Pneumatic Positive Bias Relay

15464T
$360.74 / EA
  • Product Type: Biasing Relay
  • Manufacturer: Fairchild
  • Product Family: Model 15
Fairchild Model 15 Pneumatic Positive Bias Relay, 1/2" FPT Pipe, 2 to 150 PSIG, Aluminum Alloy, Buna-A and Dacron Diaphragm, Pneumatic Positive Bias Relay.
QTY

Contact Our Process Control Experts

Contact our experts to answer questions or help you with your application needs.

Services

  • Distribution of components services
  • On-site inventory management
  • Factory Automation Services
  • Product expediting
  • Product obsolescence notifications and replacements
  • Kitting and packaging
  • Custom labeling

Product Description

Pneumatic Positive Bias Relay; Item Positive Bias Relay; Type Tamperproof; Overall Dimension 3 Inch Width x 7 Inch Height; Pipe Size 1/2 Inch Female Threaded; Gauge Port Size (2) 1/4 Inch Threaded; Vent Size (4) 13/64 Inch Diameter; Material Aluminum Alloy (Body/Housing); Mounting Type Line/Panel; Mounting Hole Size (2) 1/4 Inch-20 TPI x 0.5 Inch; Bias Pressure Range 2 to 150 PSIG; Supply Pressure 250 PSIG (Maximum); Signal/Output Pressure 150 PSIG (Maximum); Supply Pressure Effect 0.1 PSIG; Flow Capacity 40 SCFM at 100 PSIG; Exhaust Capacity 5-1/2 SCFM; Sensitivity 1/4 Inch WC; Ambient Temperature -40 to 200 Deg F; Includes Stainless Steel/Brass/Zinc Plated Steel Trim, Buna-A and Dacron Diaphragm; Applicable Standard ISO 9001, FM

Features

The Model 15 is Sensitive to 1/4 Inch Water Column Variation which Permits Use in Precision Applications; A Balanced Supply Valve Minimizes the Effects of Supply Pressure Variation; Aspirator Tube Minimizes Downstream Pressure Droop Under Flow Conditions; Flow of up to 40 SCFM with 100 PSIG Supply at 20 PSIG Setpoint Allows Use in Applications Requiring High Flow Capacity; A Separate Control Chamber Isolates the Diaphragm from the Main Flow to Eliminate Hunting and Buzzing; Permits Use in High Precision Applications; Minimizes the Effects of Supply Pressure Variation; Minimizes Downstream Pressure Droop Under Flow Conditions; Allows Use in Applications Requiring High Flow and/or Fast Response; Isolates the Diaphragm from the Main Flow to Eliminate Hunting and Buzzing; Quick and Easy Field Installation

Series/Model Info

The Model 15 Positive Bias Relay is designed for applications that require an output pressure that is the sum of a controlled input signal plus a fixed bias. This pneumatic relay provides an output pressure that represents the input signal pressure plus a preset bias.
