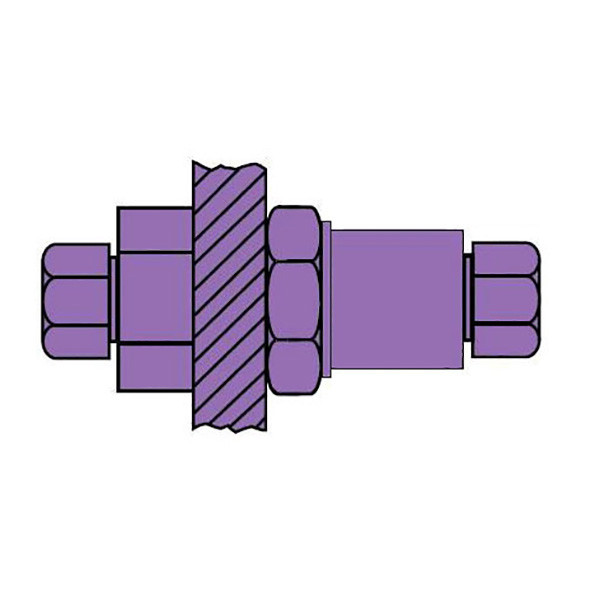

20BFX4466 Parker Coupling Fitting

20BFX4466
$109.46 / Each
In Stock
  • Application: Chemical Injection, High Pressure Test Panel/Gas System, Offshore Skid Panel
  • End Connection: SF250CX Medium Pressure Coned-and-Threaded x SF250CX Medium Pressure Coned-and-Threaded
  • Material: 316 Stainless Steel
  • Pressure Rating: 20000 PSI
  • Process: Cold Worked
  • Size A: 1/4 in.
  • Size B: 1/4 in.
  • Thickness: 0.38 Inch

Parker Instrumentation Coupling Fitting, 1/4" x 1/4", SF250CX Medium Pressure Coned-and-Threaded x SF250CX Medium Pressure Coned-and-Threaded, 20000 PSI, Cold Worked 316 Stainless Steel, Bulkhead, Straight, Coupling.

Browse All Parker Hannifin Products

QTY

Contact Our Process Control Experts

Contact our experts to answer questions or help you with your application needs.

Services

  • Distribution of components services
  • On-site inventory management
  • Factory Automation Services
  • Product expediting
  • Product obsolescence notifications and replacements
  • Kitting and packaging
  • Custom labeling

Product Description

Coupling Fitting; Type Bulkhead, Straight; Size A 1/4 Inch; Size B 1/4 Inch; Thickness 0.38 Inch; End Connection SF250CX Medium Pressure Coned-and-Threaded x SF250CX Medium Pressure Coned-and-Threaded; Material 316 Stainless Steel; Process Cold Worked; Pressure Rating 20000 PSI; Temperature Rating -423 to 1200 Deg F; Application High Pressure Test Panel/Gas System, Offshore Skid Panel, Chemical Injection; Applicable Standard ISO 9001; Hex Size 0.5 Inch and 1 Inch; Minimum Opening Size 0.125 Inch

Features/Benefits

Coned-And-Threaded Connection Designed to Permit Larger Bore Size Increased Flow Rate; Connection Weep Holes for Safety and Leak Detection

Series Information

Parker Autoclave's SF Series medium pressure cone and thread fittings are designed for use with 20SM Series medium pressure valves and Parker Autoclave medium pressure tubing. These cone and thread fittings are rated up to 20,000 PSI (1379 BAR). One of the unique features is that these fittings incorporate connections with orifices sized to match the high-flow Parker Autoclave 20SC Series valves. The installer can obtain a higher flow rate with these matched valves, fittings and tubing.

Additional Product Information

Coupling Fitting; Type Bulkhead, Straight; Size A 1/4 Inch; Size B 1/4 Inch; Thickness 0.38 Inch; End Connection SF250CX Medium Pressure Coned-and-Threaded x SF250CX Medium Pressure Coned-and-Threaded; Material 316 Stainless Steel; Process Cold Worked; Pressure Rating 20000 PSI; Temperature Rating -423 to 1200 Deg F; Application High Pressure Test Panel/Gas System, Offshore Skid Panel, Chemical Injection; Applicable Standard ISO 9001; Hex Size 0.5 Inch and 1 Inch; Minimum Opening Size 0.125 Inch
