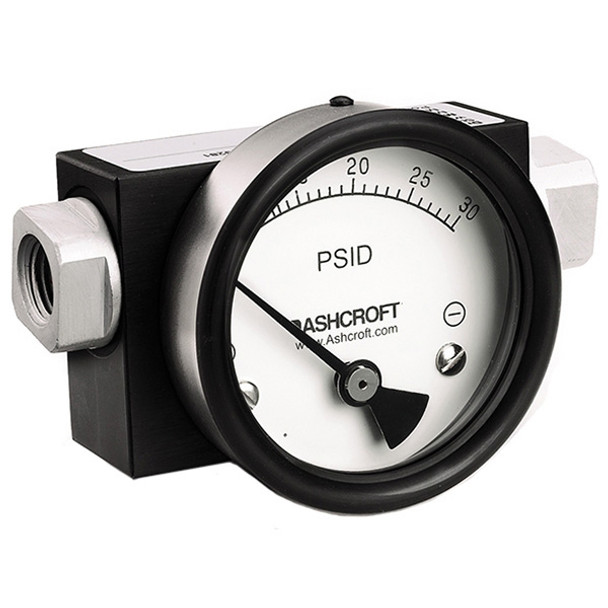

251130SD25L60# Ashcroft Differential Pressure Gauge

251130SD25L60#
Request for Quote
  • Dial Size: 2-1/2"
  • Connection Location: Lower Mount
  • Display Type: Dial
  • Enclosure Rating: IP65
  • Full-Scale Accuracy: +/-2 Percent
  • Max. Pressure: 60 PSI
  • Min. Pressure: 0 PSI
  • Sensor Element: Buna-N Diaphragm Piston Actuated
  • Temperature Rating: 175 Deg F (Process)
  • Enclosure Material: Stainless Steel
  • End Connection: 1/2" Female Threaded

Ashcroft 1130 Differential Pressure Gauge, 1/2" FPT, 0 to 60 PSI, +/-2% Accuracy, 2-1/2" Dial, Buna-N Diaphragm Piston Actuated, Stainless Steel Case, Glass Movement, Buna-N O-Ring, Dry, Lower, Differential, Single Scale, Differential Pressure Gauge.

Browse All 1130 Products

Browse All Ashcroft Products

QTY

Contact Our Process Control Experts

Contact our experts to answer questions or help you with your application needs.

Services

  • Distribution of components services
  • On-site inventory management
  • Factory Automation Services
  • Product expediting
  • Product obsolescence notifications and replacements
  • Kitting and packaging
  • Custom labeling

Product Description

Differential Pressure Gauge; Pressure Gauge Type Differential, Single Scale; Minimum Pressure 0 PSI; Maximum Pressure 60 PSI; Display Type Dial; Enclosure IP65; Enclosure Material Stainless Steel; End Connection 1/2 Inch Female Threaded; Connection Location Lower; Sensor Element Buna-N Diaphragm Piston Actuated; Dial Diameter 2-1/2 Inch; Filler Material None; Temperature Rating 175 Deg F (Process); Full Scale Accuracy +/-2 Percent; Application Filtration Monitoring, Hydraulic, Flow Rate, Pump Performance, Measuring Pressure Drop; Case Design Type Dry; Body Material Stainless Steel; Window Material Glass; O-Ring Material Buna-N

Features/Benefits

High static pressure capability; Superior magnets for smoother pointer motion; Recommended for high differential and high static pressure; Low Cost

Series Information

The Ashcroft ® 1130 piston style differential pressure gauge is an economical means for measuring pressure between two independent pressure sources. Used on process monitoring or controls where small migration of the process media is permissible. Intended for hydraulic oil, non-corrosive applications and some air and gas applications.
