Parker Stream Switching System

2F-R3GCK-V-SS-3-FF
Request for Quote
  • Manufacturer: Parker Instrumentation
  • Product Family: R3 Series
  • Refine Search: Stream Switching System

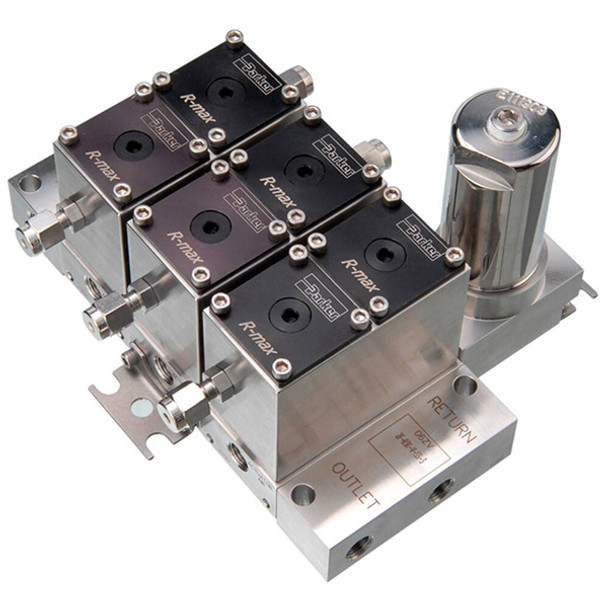

Parker R3 Series Stream Switching System, 1/8" x 1/8", FPT x FPT, 316 Stainless Steel Body, Fluorocarbon Rubber Seal, PCTFE Seat, 500 PSIG CWP, ARV Base, 3-Module, Stream Switching System.
QTY

Contact Our Process Control Experts

Contact our experts to answer questions or help you with your application needs.

Services

  • Distribution of components services
  • On-site inventory management
  • Factory Automation Services
  • Product expediting
  • Product obsolescence notifications and replacements
  • Kitting and packaging
  • Custom labeling

Product Description

Electric Actuator; Type Single Direction, SPDT; Voltage Rating 24 Volt AC; Current Rating 1.3 Amp; Frequency Rating 50/60 Hertz; Power Rating 1/3 HP; Torque 150 Pound; Enclosure NEMA 4/4X; Size 4.73 Inch Length x 5.95 Inch Width; Supply Connection Size 1/2 Inch Threaded Conduit; Operating Temperature 32 to 150 Deg F; Approval CSA; Flow Pattern 2-Way; Material Polyvinyl Chloride (Enclosure), Zinc Plated Steel (Output Shaft Male); Duty Cycle 25 Percent; Cycle Time 9 Second; Applicable Standard ISO

Features/Benefits

PVC Cover Resists Damage/UV Radiation; Hardened Steel Spur Gear Drive Train Provides Consistent, Long Life Performance; Permanently Lubricated Gear Train and Bearings; Low Profile Design/Direct Drive Male Output Permit Limited Space Installation

Series/Model Information

Parker MB Series Ball Valves, with their rugged compact design, offer positive shut off or directional control of fluids in process, power and instrumentation applications. The unique one piece seat/packing design insures excellent sealing characteristics while accommo dating a superior temperature range and cycle life. These valves are available in two-way and three-way configurations, brass and stainless steel construction, with a wide variety of port connections. Also, all ports are suitable as inlets to full operating pressure of the valve.
