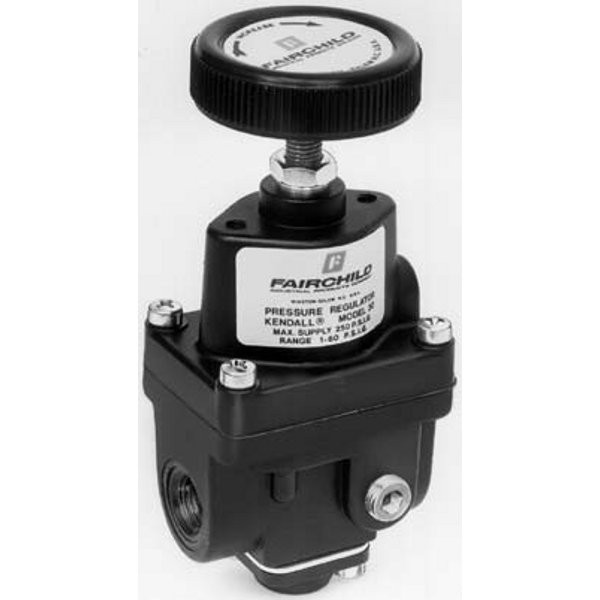

30242B Fairchild Products Model 30 Compact Precision Regulator

$129.37 / Each
  • Product Type: Compact Precision Regulator
  • Accuracy: 0.15 psi
  • Ambient Temperature: -40 F (-40 C) to 200 F (93.3 C)
  • Base Model: 30242
  • Body Material: Aluminum
  • Elastomer: Nitrile on Dacron
  • Exhaust Capacity: 2.0 SCFM [3.4m3/Hr] where downstream pressure is 5 psi above 20 psi setpoint
  • Exhaust Type: Straight (standard)
  • Flow Capacity: 40 SCFM
  • Mounting: Wall (order 21667-1 bracket below)
  • Operator: Knob (standard) 1-7/8 in OD
  • Options: [B] low bleed
  • Pipe Size: 1/4 FPT
  • Pressure Range: 1-60 psi
  • Sensitivity: 1/4 in WC
  • Supply Pressure: 250 psi
  • Trim: Brass
  • Refine Search: Industrial

Fairchild Model 30 midget pressure regulator with a 0-60psig range, 1/4in FNPT ports and low bleed

Browse All Model 30 Products

Browse All Fairchild Industrial Products Products


Contact Our Process Control Experts

Contact our experts to answer questions or help you with your application needs.


  • Distribution of components services
  • On-site inventory management
  • Factory Automation Services
  • Product expediting
  • Product obsolescence notifications and replacements
  • Kitting and packaging
  • Custom labeling

Related Products & Accessories

fairchild round pressure gauge
G-1541 Customer Part #:
$40.08 / Each

Product Description

The Rotork Fairchild Model 30 is a compact precision pressure regulator designed for applications that require high performance and accurate process control where space may be limited or you wish to reduce the overall size of your panel or equipment. Stability of regulated pressure is maintained under varying flow conditions through the use of an aspirator tube which adjusts the supply valve in accordance with the flow velocity. The Model 30 pneumatic regulator features control sensitivity of 1/4 in water column and a balanced supply valve to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure changes or conditions. The Fairchild Model 30 precision regulator will handle a 250 psig [17 BAR] maximum supply pressure and offers five (5) output pressure ranges from 0-2 psig [0-0.15 BAR] (0-15 kPa) up to 2-100 psig [0.1-7 BAR] (15-700 kPa).

  • Control sensitivity of 1/4 in water column variation allows use in precision applications
  • Pressure Balanced Supply Valve lets the regulator remain unaffected by supply pressure changes
  • Flow of up to 40 SCFM [68m3/Hr] with 100 psig supply allows use in applications with high flow requirements
  • An aspirator tube compensates downstream pressure droop under flow conditions
  • A separate Control Chamber isolates the diaphragm from the main flow to eliminate hunting and buzzing
  • Allows servicing with Model 30 Service Kit without removal from the line
  • Canadian Registration Number (CRN) Certification for all territories and provinces
  • Hazardous locations: Group II, Category 2, Gas and Dusts: Zones 1, 2 and 21, 22, respectively Gas Groups IIA and IIB
NOTES: Oil free air must be applied to the regulator. Use a filter to remove dirt and entrained liquid in the air line ahead of the regulator. If an air line lubricator is used, it MUST be located downstream of the regulator, to avoid interference with regulator performance.

Dimension Drawing

model 30 midget regulator
