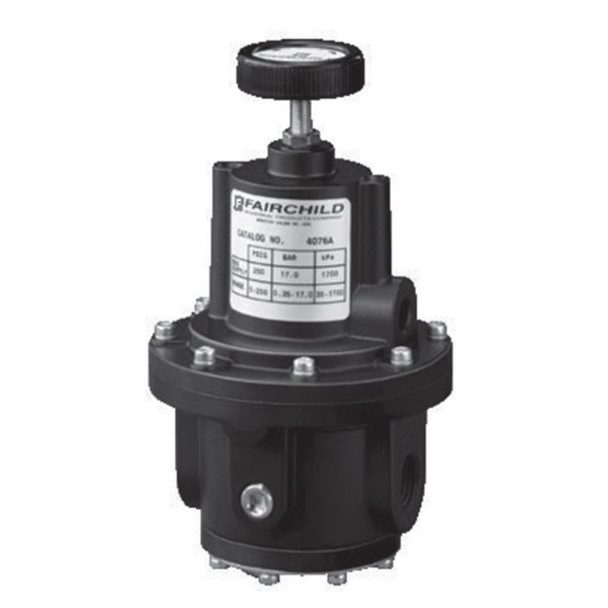

Fairchild High Flow No Bleed Pressure Regulator

4036AE
$356.21 / EA
  • Refine Search: Industrial
  • Product Type: No Bleed Precision Regulator
  • Manufacturer: Fairchild
  • Product Family: Model 4000A
  • Diaphragm Material: Nitrile on Dacron
  • Flow Capacity: 150 SCFM at 100 psig
  • Mounting: 20555-1 mounting bracket available
  • Port Size: 3/4 FPT
  • Max. Outlet Pressure: 250 PSIG
  • Port Type: FPT
Fairchild M4000A: High Flow No Bleed Pressure Regulator, 0.5-30 psig 250 psig max, 150 SCFM at 100 psig, Aluminum body, Nitrile on Dacron diaphragm, 3/4 FPT ports. 20555-1 mounting bracket available.
QTY

Contact Our Process Control Experts

Contact our experts to answer questions or help you with your application needs.

Services

  • Distribution of components services
  • On-site inventory management
  • Factory Automation Services
  • Product expediting
  • Product obsolescence notifications and replacements
  • Kitting and packaging
  • Custom labeling

Product Description

Model 4000A Pneumatic Pressure Regulator

Features
  • Control sensitivity of 1/2" water column allows use in precision applications.
  • Large Supply and Exhaust Valves provide high forward and exhaust flows.
  • Soft Supply and Exhaust Valve seats minimize air consumption.
  • A balanced Supply Valve minimizes the effect of supply pressure variation.
  • An Aspirator Tube compensates downstream pressure droop under flow conditions.
  • A separate Control Chamber isolates the diaphragm from the main flow to eliminate hunting and buzzing.
  • Unit construction lets you service the Model 4000A without removing it from the line.
  • Canadian Registration Number (CRN) certification for all territories and provinces.

Dimension Drawing
