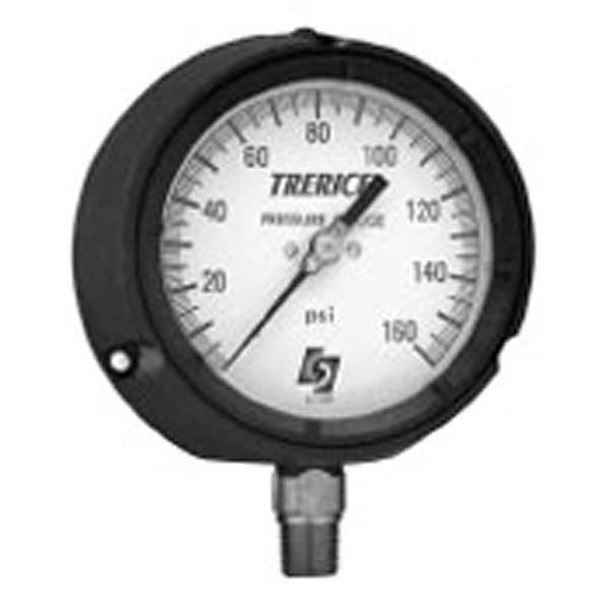

450SS 45 04L A 160 Trerice 450 Series Pressure Gauge, 0-160 PSI, 4.5" Dial

450SS 45 04L A 160
$93.72 / Each
  • Pressure Range Type: Standard Pressure Range
  • Pressure Range (PSI/inHG/IN H2O): 160 PSI
  • Dial Size: 4-1/2"
  • Connection Size: 1/2"
  • Connection Location: Lower Mount
  • Connection Type: MPT
  • Filled: Dry Case, Liquid-Fillable
  • Wetted Material: Stainless Steel
  • Case: Phenolic
  • Option: Adjustable Pointer

Trerice 450 Series Process Pressure Gauge, dry case, liquid-fillable, 4-1/2" dial, 0-160 psig range, 316 SS wetted parts, 1/2" NPT lower mount, polypropylene case.

Browse All 450 Series Products

Browse All Trerice Products

QTY

Contact Our Gauge Experts

Need help selecting a pressure gauge? Contact our experts to answer questions.

Use our Gauge Finder Tool to search by specific attributes for your application needs.

Services

  • Gauge Calibration Services
  • Gauge seal assembly and mounting
  • Diaphragm seal assembly and maintenance
  • Gauge liquid filling with various types of fills
  • Custom dial pressure measurement ranges
  • Gauge audits to insure proper functions
  • Vacuum gauge calibration and repair

Related Products & Accessories

Trerice 870-16 Pulsation Dampener
870-16 Customer Part #:
Request for Quote
QTY
Trerice 870-10 Pulsation Dampener
870-10 Customer Part #:
Request for Quote
QTY

Product Description

The Trerice 450 Series process gauge is designed for the petrochemical and industrial process industries, withstanding the most rugged applications, while maintaining precise accuracy. This 4-1/2" solid front, blow-out back gauge features fiberglass reinforced polypropylene turret case and screwed ring and field liquid-fill capability (no kit required). The 450 offers a choice of wetted parts of bronze tube/brass socket, 316 SS, or Monel.
  • Solid-front case with blow-out back for safety
  • Fiberglass-reinforced polypropylene turret case
  • Choice of bourdon tube and socket materials
  • ASME B 40.1 Grade 2A, +/-0.5% of full scale
  • Liquid-fillable or glycerine-filled case
  • Lower or back mount connection
  • Vacuum to 20,000 psig ranges
