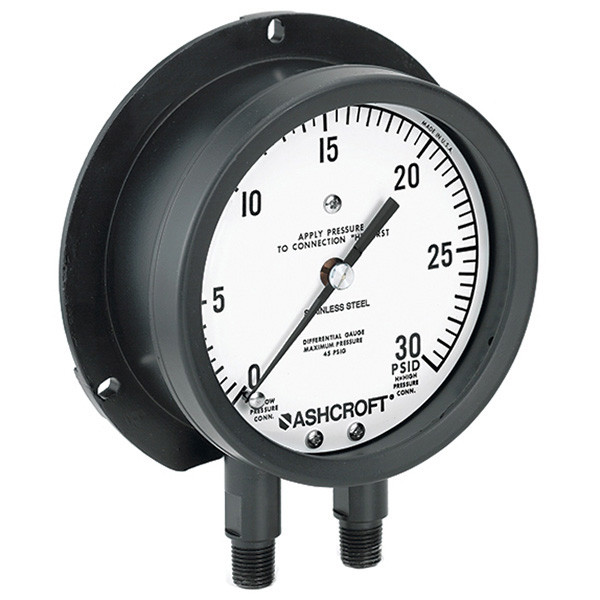

451127SD02LXSG30# Ashcroft Differential Pressure Gauge

Request for Quote
  • Dial Size: 4-1/2"
  • Connection Location: Lower Mount
  • Accuracy: +/-2 Percent
  • Dial Material: Aluminum
  • Display Type: Dial
  • Full-Scale Accuracy: +/-2 Percent
  • Max. Pressure: 30 PSI
  • Mid-Scale Accuracy: +/-1 Percent
  • Min. Pressure: 0 PSI
  • Mounting Type: Stem/Surface
  • Sensor Element: 316 Stainless Steel Bourdon Tube/Socket
  • Temperature Rating: -20 to 200 Deg F (Ambient), -20 to 250 Deg F (Process), -40 to 250 Deg F (Storage)
  • Enclosure Material: Black Epoxy Coated Rugged/Cast Aluminum
  • End Connection: 1/4" Male Threaded

Ashcroft 1127 Differential Pressure Gauge, 1/4" MPT, 0 to 30 PSI, +/-2/1/2% Accuracy, 4-1/2" Aluminum Dial, 316 Stainless Steel Bourdon Tube/Socket, Black Epoxy Coated Rugged/Cast Aluminum Cast/Hinged Ring Case, Bronze Movement, Welded Joint, Aluminum Back Cover, Dry, Lower, Differential, Open Front, Single Scale, Differential Pressure Gauge with Safety glass Window.

Browse All 1127 Products

Browse All Ashcroft Products


Contact Our Process Control Experts

Contact our experts to answer questions or help you with your application needs.


  • Distribution of components services
  • On-site inventory management
  • Factory Automation Services
  • Product expediting
  • Product obsolescence notifications and replacements
  • Kitting and packaging
  • Custom labeling

Product Description

Differential Pressure Gauge; Pressure Gauge Type Differential, Open Front, Single Scale; Minimum Pressure 0 PSI; Maximum Pressure 30 PSI; Mounting Type Stem/Surface; Display Type Dial; Enclosure Material Black Epoxy Coated Rugged/Cast Aluminum; End Connection 1/4 Inch Male Threaded; Connection Location Lower; Sensor Element 316 Stainless Steel Bourdon Tube/Socket; Dial Diameter 4-1/2 Inch; Dial Material Aluminum; Filler Material None; Temperature Rating -20 to 200 Deg F (Ambient), -20 to 250 Deg F (Process), -40 to 250 Deg F (Storage); Full Scale Accuracy +/-2 Percent; Mid Scale Accuracy +/-1 Percent; Accuracy +/-2 Percent; Application Refinery, Chemical and Petrochemical Plant, Water and Wastewater Pressure Control, Mining and Metal, Filtration Monitoring, Level and Flow Measurement; Case Design Type Dry; Movement Details Bronze; Window Material Safety glass; Back Cover Material Aluminum; Dial Figure Black; Dial Baground White; Hinged Ring Material Black Epoxy Coated Aluminum; Joint Type Welded; Applicable Standard ASME B40.100 Grade A


Zero center dial to indicate negative or positive pressure

Series Information

The Ashcroft® 1127 differential pressure gauge is used to measure the differential pressure between two separate pressure sources. The standard stainless steel Bourdon system offers an advantage over similar bronze systems, generally not needing to be isolated from the process media using diaphragm seals and capillary lines. A good selection for system monitoring.
