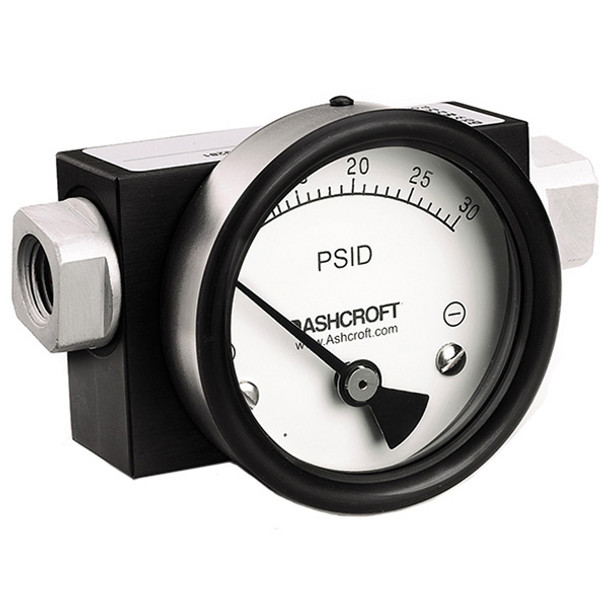

Ashcroft Differential Pressure Gauge

451131SD25LXVD40#
Request for Quote
  • Manufacturer: Ashcroft
  • Connection Location: Lower Mount
  • Dial Size: 4-1/2"
  • Display Type: Dial
  • Enclosure Material: Stainless Steel
  • Enclosure Rating: IP65
  • End Connection: 1/4" Female Threaded
  • Full-Scale Accuracy: +/-2 Percent
  • Max. Pressure: 40 PSI
  • Min. Pressure: 0 PSI
  • Sensor Element: Buna-N Rolling Diaphragm
  • Temperature Rating: 175 Deg F (Process)
  • Product Family: 1131
Ashcroft 1131 Differential Pressure Gauge, 1/4" FPT, 0 to 40 PSI, +/-2% Accuracy, 4-1/2" Dial, Buna-N Rolling Diaphragm, Stainless Steel Case, Glass Window, Dry, Lower, Differential, Single Scale, Differential Pressure Gauge with Viton Seal.
QTY

Contact Our Process Control Experts

Contact our experts to answer questions or help you with your application needs.

Services

  • Distribution of components services
  • On-site inventory management
  • Factory Automation Services
  • Product expediting
  • Product obsolescence notifications and replacements
  • Kitting and packaging
  • Custom labeling

Product Description

Differential Pressure Gauge; Pressure Gauge Type Differential, Single Scale; Minimum Pressure 0 PSI; Maximum Pressure 40 PSI; Display Type Dial; Enclosure IP65; Enclosure Material Stainless Steel; End Connection 1/4 Inch Female Threaded; Connection Location Lower; Sensor Element Buna-N Rolling Diaphragm; Dial Diameter 4-1/2 Inch; Filler Material None; Temperature Rating 175 Deg F (Process); Full Scale Accuracy +/-2 Percent; Application Filtration Monitoring, Flow Measurement, Leak Detection and Pressure Drop; Includes Viton Seal; Case Design Type Dry; Body Material Stainless Steel; Window Material Glass

Features/Benefits

High static pressure capability; Superior magnets for smoother pointer motion; No migration of the process media; Economical means for measuring differential pressure

Series Information

The Ashcroft® 1131 differential pressure gauge is an economical means for measuring pressure between two independent pressure sources. Uses a rolling diaphragm design to separate high and low pressure ports and isolates media between low and high pressure sides.
