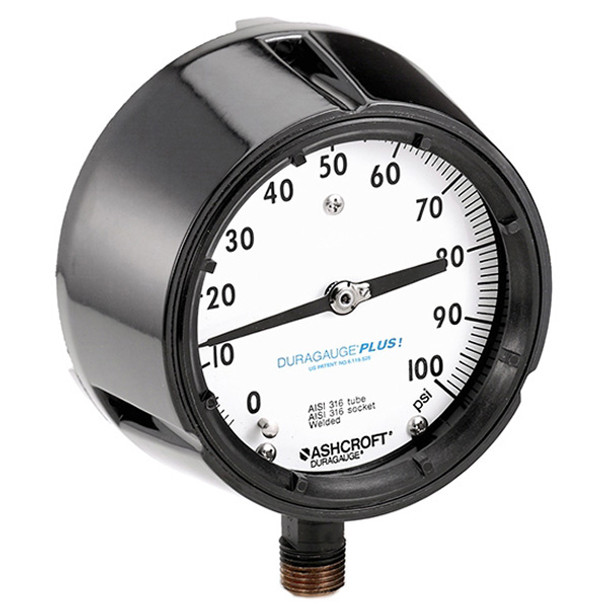

451279RS04L600KP Ashcroft Pressure Gauge
- Dial Size: 4-1/2"
- Connection Location: Lower Mount
- Dial Material: Aluminum
- Display Type: Dial
- Full-Scale Accuracy: +/-0.5 Percent
- Max. Pressure: 600 KPa
- Min. Pressure: 0 KPa
- Mounting Type: Stem/Surface
- Pointer Material: Aluminum
- Pointer Type: Micrometer Adjustable
- Sensor Element: 316L Stainless Steel Bourdon Tube/1019 Steel Socket
- Temperature Rating: -20 to 200 Deg F (Ambient), -20 to 250 Deg F (Process), -40 to 250 Deg F (Storage)
- Enclosure Material: Phenolic
- End Connection: 1/2" Male Threaded
Ashcroft 1279 Pressure Gauge, 1/2" MPT, 0 to 600 kPa, +/-0.5% Accuracy, 4-1/2" Aluminum Dial, Micrometer Adjustable Pointer, 316L Stainless Steel Bourdon Tube/1019 Steel Socket, Phenolic Case, Glass Window, Non-Stick Coated 400 Stainless Steel Rotary/Adjustable Movement, Welded Joint, Polycarbonate Threaded Ring, Dry, Lower, Pressure Relief Back Solid Front, Single Scale, Pressure Gauge.
Pressure Gauge; Pressure Gauge Type Pressure Relief Back Solid Front, Single Scale; Minimum Pressure 0 kPa; Maximum Pressure 600 kPa; Mounting Type Stem/Surface; Display Type Dial; Enclosure Material Phenolic; End Connection 1/2 Inch Male Threaded; Connection Location Lower; Sensor Element 316L Stainless Steel Bourdon Tube/1019 Steel Socket; Dial Diameter 4-1/2 Inch; Dial Material Aluminum; Pointer Type Micrometer Adjustable; Pointer Material Aluminum; Filler Material None; Temperature Rating -20 to 200 Deg F (Ambient), -20 to 250 Deg F (Process), -40 to 250 Deg F (Storage); Full Scale Accuracy +/-0.5 Percent; Application Refinery, Chemical, Petrochemical Plant and Offshore Oil Rig, Water and Wastewater Pressure Control, Pulp and Paper, Mining and Metal, Equipment Skid, Specialized OEM Equipment, Cryogenic; Case Design Dry; Dial Figure Color Black; Dial Baground White; Threaded Ring Material Polycarbonate; Pressure Relief Back Material Polycarbonate; Window Material Glass; Joint Type Welded; Moment Details Non-Stick Coated 400 Stainless Steel Rotary/Adjustable; Applicable Standard CRN, UL 94 V-0, ASME B40.100 Grade 2AFeatures/Benefits
Solid-front case design for safetySeries Information
The Ashcroft® 1279 Duragauge® pressure gauge provides dependability, safety and performance. Used throughout the served markets, its manufacture is continuously monitored to assure uncompromising standards and material integrity. An ideal choice for satisfying most applications and installation requirements.
