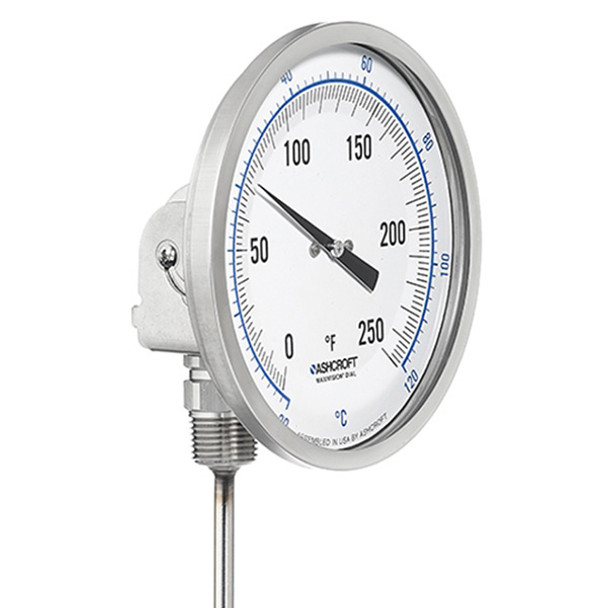

50EI60E090XC4-40/160F Ashcroft Bi-Metal Thermometer
- Applicable Standard: ASME B40.200
- Connection Location: Everyangle
- Dial Size: 5 in.
- Display Type: Maxivision Dial
- Enclosure Material: Welded 304 Stainless Steel
- Full Scale Accuracy: +/-1 Percent
- Graduation: 2 Deg F
- Max. Temperature: 160 Deg F
- Min. Temperature: -40 Deg F
- Scale Type: Fahrenheit
- Stem Length: 9 in.
Ashcroft EI Bi-Metal Thermometer, 1/2" Fixed NPT, 5" Maxivision Dial, 9" Stem Length, 2 Deg F Graduation, -40 to 160 Deg F, +/-1% Accuracy, Welded 304 Stainless Steel, Glass Window, Everyangle, Robust, Hermetically Sealed, External Adjustment, Single Scale, Bi-Metal Thermometer.
Bi-Metal Thermometer; Scale Type Single, Fahrenheit; Dial Size 5 Inch; Stem Length 9 Inch; Enclosure Material Welded 304 Stainless Steel; Minimum Temperature -40 Deg F; Maximum Temperature 160 Deg F; Display Type Maxivision Dial; Graduation 2 Deg F; Connection Location Everyangle; Full Scale Accuracy +/-1 Percent; Applicable Standard ASME B40.200; RoHS Compliant; Type Robust, Hermetically Sealed, External Adjustment; Enclosure Rating NEMA 4X, IP66; Dial Figure Black; Dial Background White; Connection Size 1/2 Inch Fixed Threaded; Stem Material Welded 316 Stainless Steel; Stem Diameter 1/4 Inch; Pointer Color Black; Window Material Glass; Individual Calibration Chart; Application Offshore Oil Rig, Chemical and Petrochemical Plant, Water and Wastewater Pressure Control, Pulp and Paper, Refinery, Power, General Industrial, HVAC, Equipment Skid, Pharmaceutical/Biotech, Food and Beverage; Silicone Dampened Coil for Reduction of PointerFeatures/Benefits
External adjustment allows quick, limited span adjustments & Able to perform quick and limited span adjustments; RoHS CompliantSeries Information
The Ashcroft® EI bimetallic thermometer provides high quality and performance. An ideal choice for accurate temperature measurement.
