631008S01B200#/KP Ashcroft Industrial Pressure Gauge

631008S01B200#/KP
Request for Quote

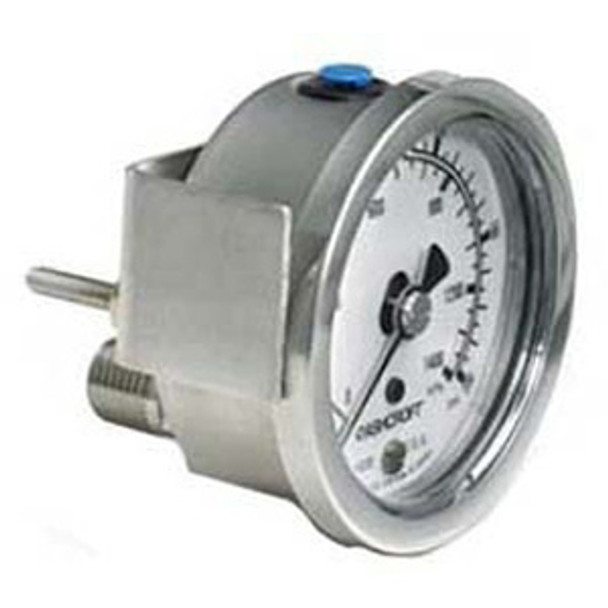

Ashcroft 1008S Industrial Pressure Gauge
  • Dial Size: 2-1/2"
  • Connection Location: Lower Back Mount
  • Filled: Dry Liquid Fillable
  • Dial Material: Aluminum
  • Display Type: Dial
  • Enclosure Rating: IP54/65, NEMA 4X
  • Full-Scale Accuracy: +/-1.6 Percent
  • Max. Pressure: 200 PSI/1400 KPa
  • Min. Pressure: 0 PSI/0 KPa
  • Pointer Color: Black
  • Pointer Material: Aluminum
  • Sensor Element: 316L Stainless Steel Bourdon Tube/Socket
  • Temperature Rating: -40 to 200 Deg F (Ambient), -40 to 250 Deg F (Process/Storage)
  • Enclosure Material: 304 Stainless Steel
  • End Connection: 1/8" Male Threaded

Ashcroft 1008S Industrial Pressure Gauge, 1/8" MPT, 0 to 200 PSI/0 to 1400 kPa, +/-1.6% Accuracy, 2-1/2" Aluminum Dial, Black Pointer, 316L Stainless Steel Bourdon Tube/Socket, 304 Stainless Steel Case/Ring, Power Flex Movement, Dry Liquid Fillable, Lower Back, Corrosion Resistant, Dual Scale, Industrial Pressure Gauge with Polycarbonate Window.

Browse All 1008A/AL Products

Browse All Ashcroft Products

QTY
Add To Favorites

Contact Our Process Control Experts

Contact our experts to answer questions or help you with your application needs.

Services

  • Distribution of components services
  • On-site inventory management
  • Factory Automation Services
  • Product expediting
  • Product obsolescence notifications and replacements
  • Kitting and packaging
  • Custom labeling
1-800-227-0305Contact an Expert

Product Description

Industrial Pressure Gauge; Pressure Gauge Type Corrosion Resistant, Dual Scale; Minimum Pressure 0 PSI/0 kPa; Maximum Pressure 200 PSI/1400 kPa; Display Type Dial; Enclosure NEMA 4X, IP54/65; Enclosure Material 304 Stainless Steel; End Connection 1/8 Inch Male Threaded; Connection Location Lower Back; Sensor Element 316L Stainless Steel Bourdon Tube/Socket; Dial Diameter 2-1/2 Inch; Dial Material Aluminum; Pointer Material Aluminum; Pointer Color Black; Filler Material Dry Liquid Fillable; Temperature Rating -40 to 200 Deg F (Ambient), -40 to 250 Deg F (Process/Storage); Full Scale Accuracy +/-1.6 Percent; Application Pump and Compressor, Hydraulic and Pneumatic, Specialized OEM Equipment, Food and Beverage; ​RoHS Compliant​; Case Design Type Dry; Movement Details Power Flex; Window Material Polycarbonate; Dial Figure Black; Dial Baground White; Ring Material 304 Stainless Steel; Applicable Standard CRN, PED

Features/Benefits

PowerFlex™movement provides superior resistance to shock; vibration and pulsation; extends product life and reduces maintenance costs; True Zero™reduces reading errors by using a "zero box" instead of conventional dial pins (posts); this ensures product safety, integrity and system control; ​RoHS Compliant

Series Information

The Ashcroft® 1008S/SL pressure gauge offers exceptional quality and reliability in an all stainless steel pressure gauge. The sealed case protects from ambient conditions and includes features enhancing product performance and safety. An ideal choice when ambient and process conditions are harsh.
