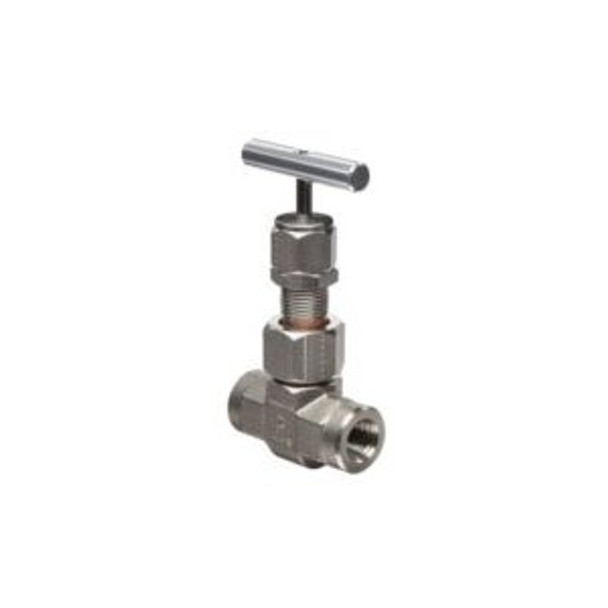

6F-U12LR-G-SS-C3 Parker U12 Series Needle Valve

$304.37 / Each
  • Stem Seal: Grafoil
  • Stem Type: Regulating
  • Configuration: Inline
  • End 1 Type: FNPT
  • End 2 Size: 3/8 in.
  • End 2 Type: FNPT
  • Temperature Rating: -65°F to 700°F (-54°C to 371°C)
Parker U12 Series Needle Valve, 3/8" Female NPT, U12L Valve Series, Inline Configuration, Regulating Stem Type, Grafoil Packing, Stainless Steel Body, Manually Operated.

Contact Our Process Control Experts

Contact our experts to answer questions or help you with your application needs.


  • Distribution of components services
  • On-site inventory management
  • Factory Automation Services
  • Product expediting
  • Product obsolescence notifications and replacements
  • Kitting and packaging
  • Custom labeling

Product Description

Parker U Series Union Bonnet Valves have been engineered for use at pressures up to 6,000 (414 bar) and temperatures as high as 1,200 °F (649 °C). A non-rotating lower stem helps to extend packing life by removing rotation from the packing area. Stem packing below the threads isolates the thread lubricant from the flow, ensuring adequate lubrication regardless of the media.


  • Union bonnet design ensures high integrity seal under severe service applications
  • Packing below the power threads protects thread lubricants from media and isolates the lubricants from the media
  • Dust seal in the packing nut protects stem threads from external contamination
  • Stem swivel above the packing eliminates entrapment area and increases packing life
  • Choice of Grafoil® or PTFE packing
  • Choice of Regulating or Blunt stem types. Blunt stemtype helps combat wire draw which may occur when two phase flow is present (i.e. steam service)
  • 316 stainless steel construction
  • Wide variety of US Customary and SI ports
  • Panel mountable
  • 100% factory tested

Dimension Drawing
