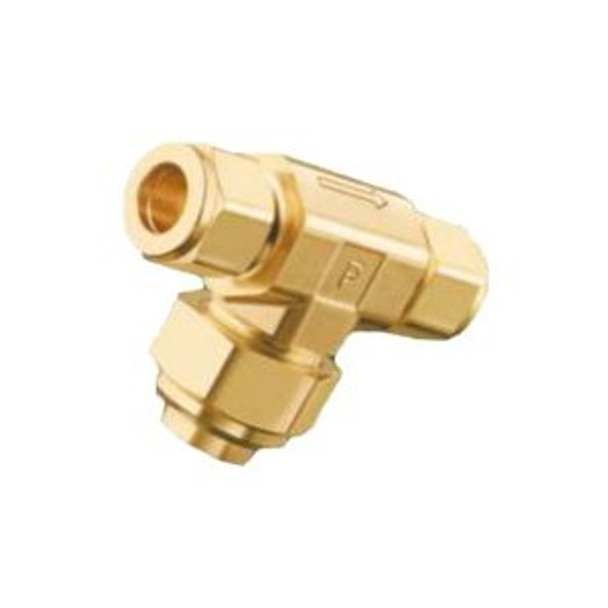

6Z-FT8-10-B Parker Instrumentation Tee Filter

$152.18 / Each
  • Product Type: Tee Filter
  • End Connections: Single Ferrule Compression
  • Filter Rating: 10 Micron
  • Seal Material: Fluorocarbon Rubber
  • Temperature Rating: -40°F to 400°F (-40°C to 204°C)

Parker CPI FT Series Tee Filters, 3/8" Female NPT, Tee Configuration, 10 Filter Rating, Fluorocarbon Rubber Seal, Brass Body.

Browse All Parker Hannifin Products


Contact Our Filtration Experts

Contact our Filtration experts to answer questions or help you with any application needs

Filtration Services:

  • Filtration consulting
  • Audits
  • Engineering and design
  • On-site training and support

Product Description

Parker FT Series Tee Filters are designed for protection of instrumentation systems from undesirable materials. Component changes or repair and maintenance can admit dirt, chips, or other contaminants to the small bore tubing.


  • Filter element replacement achievable without removing filter from installation
  • Compact, high strength forged body design with effective filtration areas of: FT4 - 1.57 sq in (1013 sq mm), FT8 - 2.53 sq in (1632 sq mm)
  • Stainless steel and brass construction
  • Standard sintered metal Filter Ratings: 1, 5, 10, 50, and 100
  • Optional 250 and 450 micron wire cloth filter elements
  • Optional bypass enables a continuous self cleaning flow around the element
  • Port connections include male and female NPT, CPI™, A-LOK®, UltraSeal, and VacuSeal

Dimension Drawing
