8210G078 120/60 ASCO General Purpose Solenoid Valve

8210G078 120/60
Request for Quote
  • Media Handled: Air-Inert Gas, Light Oil, Water
  • Port Connection: 1 in. Female Threaded x 1 in. Female Threaded
  • Temperature Rating: 175°F (Fluid)
  • Valve Position: Normally Closed
  • Application: Air Compressor, Car Wash, Industrial Water Control, Laundry Equipment, Pump
  • Approval: CE, UL
  • Body Material: Brass
  • Enclosure: NEMA 1/2/3/3S/4/4X
  • Input Supply Rating: 120 VAC 60 Hz
  • Pressure Rating: 10 to 300 PSI (Air-Inert Gas/Water/Light Oil)
  • Type: 2-Way/2-Position, Diaphragm, Pilot Operated

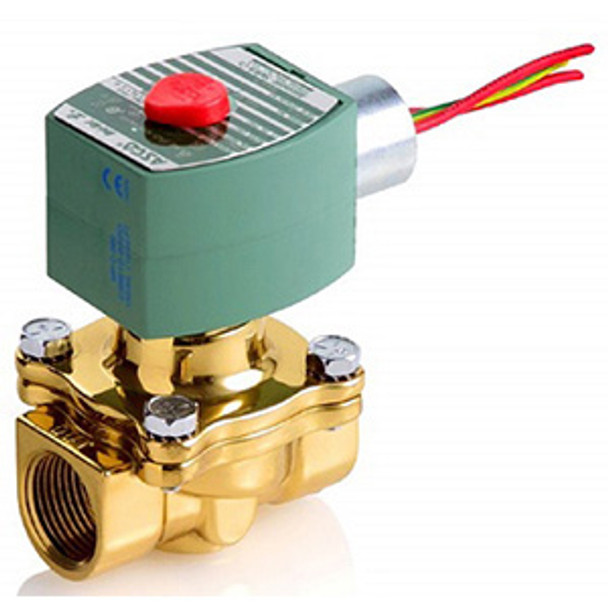

ASCO RedHat II Series 8210 General Purpose Solenoid Valve, 1" x 1", FPT x FPT, 120 VAC 60 Hz, 17.1 W, 10 to 300 PSI, Lead-Free, Brass, NEMA 1/2/3/3S/4/4X, NC, 2-Way/2-Position, Diaphragm, Pilot Operated, General Purpose Solenoid Valve for Air-Inert Gas/Water/Light Oil.

Browse All Series 8210 Products

Browse All ASCO Products

QTY

Contact Our Process Control Experts

Contact our experts to answer questions or help you with your application needs.

Services

  • Distribution of components services
  • On-site inventory management
  • Factory Automation Services
  • Product expediting
  • Product obsolescence notifications and replacements
  • Kitting and packaging
  • Custom labeling

Product Description

General Purpose Solenoid Valve; Type 2-Way/2-Position, Diaphragm, Pilot Operated; Port Connection 1 Inch Female Threaded x 1 Inch Female Threaded; Valve Position Normally Closed; Body Material Brass; Enclosure Type NEMA 1/2/3/3S/4/4X; Input Supply Rating 120 Volt AC 60 Hertz; Temperature Rating 175 Deg F (Fluid); Pressure Rating 10 to 300 PSI (Air-Inert Gas/Water/Light Oil); Media Handled Air-Inert Gas, Water, Light Oil; Inclusions/Features NBR Seal, PTFE Disc, Poly Amide Disc Holder, 305 Stainless Steel Core Tube, 430F Stainless Steel Core and Plugnut, 302 Stainless Steel Spring, Copper Shading Coil, General Purpose; Application Car Wash, Laundry Equipment, Air Compressor, Industrial Water Control, Pump; Applicable Standard UL, CE; Lead-Free; Power Rating 17.1 Watt; Coil Insulation Type Class F; Orifice Size 1 Inch; Ambient Temperature Rating 32 to 125 Deg F; Flow Factor 13.5 Cv

Features/Benefits

Wide range of pressure ratings, sizes, and resilient materials provide long service life and low internal leakage; High flow valves for liquid, corrosive, and air/inert gas service; Lead-Free

Inclusions/Features

NBR Seal, PTFE Disc, Polyamide Disc Holder, 305 Stainless Steel Core Tube, 430F Stainless Steel Core and Plugnut, 302 Stainless Steel Spring, Copper Shading Coil, General Purpose,
