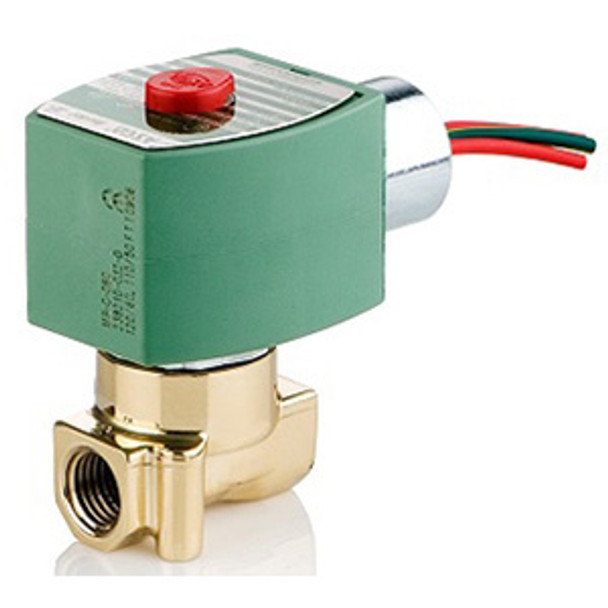

8262H261 24/DC ASCO General Service Solenoid Valve

8262H261 24/DC
$96.90 / Each
  • Media Handled: Air-Inert Gas, Light Oil, Water
  • Port Connection: 1/4 in. Female Threaded x 1/4 in. Female Threaded
  • Temperature Rating: 180°F (Fluid)
  • Valve Position: Normally Open
  • Approval: CE, CSA, UL
  • Body Material: Brass
  • Enclosure: NEMA 1/2/3/3S/4/4X
  • Input Supply Rating: 24 VDC
  • Pressure Rating: 160 PSI (Air), 135 PSI (Water), 95 PSI (Light Oil)
  • Type: 2-Way/2-Position, Direct Acting

ASCO RedHat Series 8262 General Service Solenoid Valve, 1/4" x 1/4", FPT x FPT, 24 VDC, 10.1 W, 160 PSI, Brass, NEMA 1/2/3/3S/4/4X, NO, 2-Way/2-Position, Direct Acting, General Service Solenoid Valve for Air-Inert Gas/Water/Light Oil.

Browse All Series 8262 Products

Browse All ASCO Products

QTY

Contact Our Process Control Experts

Contact our experts to answer questions or help you with your application needs.

Services

  • Distribution of components services
  • On-site inventory management
  • Factory Automation Services
  • Product expediting
  • Product obsolescence notifications and replacements
  • Kitting and packaging
  • Custom labeling

Product Description

General Service Solenoid Valve; Type 2-Way/2-Position, Direct Acting; Port Connection 1/4 Inch Female Threaded x 1/4 Inch Female Threaded; Valve Position Normally Open; Body Material Brass; Enclosure Type NEMA 1/2/3/3S/4/4X; Input Supply Rating 24 Volt DC; Temperature Rating 180 Deg F (Fluid); Pressure Rating 160 PSI (Air), 135 PSI (Water), 95 PSI (Light Oil); Media Handled Air-Inert Gas, Water, Light Oil; Inclusions/Features 305 Stainless Steel Core Tube, 430F Stainless Steel Core and Plugnut, 302 Stainless Steel Spring, Copper Shading Coil, Poly Amide Stem, General Service; Applicable Standard UL, CSA, CE; Power Rating 10.1 Watt; Orifice Size 3/32 Inch; Flow Factor 0.21 Cv; Coil Insulation Type Class F; Ambient Temperature Rating -13 to 131 Deg F

Features/Benefits

Reliable, proven design with high flows; Small poppet valves for tight shutoff; Wide range of elastomers for specialty service; Mountable in any position

Inclusions/Features

305 Stainless Steel Core Tube, 430F Stainless Steel Core and Plugnut, 302 Stainless Steel Spring, Copper Shading Coil, Polyamide Stem, General Service,
