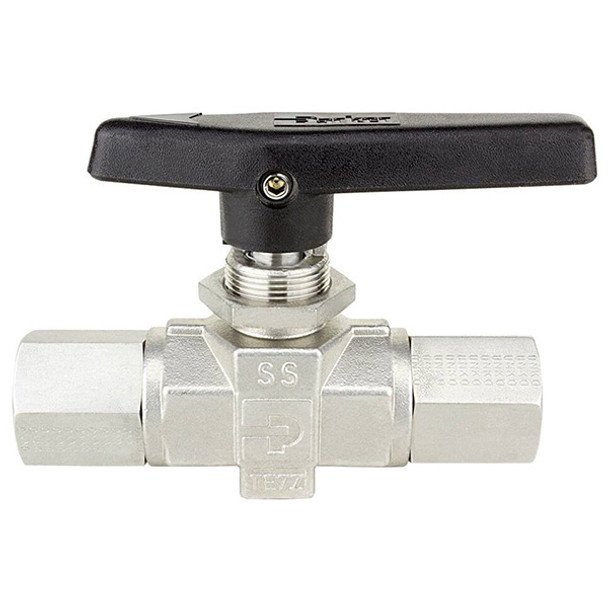

8V-B8LJ2-LT-SSP Parker Ball Valve

8V-B8LJ2-LT-SSP
Request for Quote
  • Actuation: 1/4 Turn Lever Handle
  • Application: Flow Diversion/Selection, Instrument Panel, Process Mixing System, Quick Fill System, Remote Shut-Off
  • Ball Material: 316 Stainless Steel
  • Body Material: ASTM A351 Grade CF3M 316 Stainless Steel
  • End Connection: VacuSeal x VacuSeal
  • End To End Distance: 4.42 in.
  • Handle Material: Black Nylon 6/6
  • Nominal Size: 1/2 in. x 1/2 in.
  • Pressure Rating: 6000/4000 PSIG CWP
  • Seal Material: Live-Loaded PTFE
  • Seat Material: PCTFE
  • Stem Material: ASTM A276 316 Stainless Steel
  • Temperature Rating: -65°F to 350 °F

Parker B8L Series Ball Valve, 1/2" x 1/2", VacuSeal x VacuSeal, 6000/4000 PSIG CWP, 316 Stainless Steel, Live-Loaded PTFE Seal, Black 1/4 Turn Lever Handle, 2-Way, In-Line, Panel Mount, Ball Valve.

Browse All Parker Hannifin Products

QTY

Contact Our Process Control Experts

Contact our experts to answer questions or help you with your application needs.

Services

  • Distribution of components services
  • On-site inventory management
  • Factory Automation Services
  • Product expediting
  • Product obsolescence notifications and replacements
  • Kitting and packaging
  • Custom labeling

Product Description

Ball Valve; Type 2-Way, In-Line, Vented; Actuation Type Lever Handle; Nominal Size 1/4 Inch x 1/4 Inch; End Connection A-LOK Double Ferrule Compression x A-LOK Double Ferrule Compression; End to End Distance 2.38 Inch; Body Material ASTM A276 316 Stainless Steel; Stem Material ASTM A276 316 Stainless Steel; Seat Material PFA; Handle Material Red Nylon 6/6; Port Type Full; Temperature Rating -65 to 300 Deg F; Pressure Rating 3000 PSIG CWP; Inclusions/Features 316 Stainless Steel Hollow Insert/Solid Insert/Panel Nut, Stainless Steel Set Screw, PFA Seat/Packing; Application Sample Extraction/Dispensing System in Lab, Control Panel, R and D Lab, Specialty Gas, Chemical Delivery, Pilot Plant; Orifice Diameter 0.187 Inch; Flow Capacity 1.02 Cv

Features/Benefits

One Piece Seat/Packing Design; Broad Temperature Range; Coated Metal Inserts; One Piece Stem/Ball; Wide Variety of US Customary and SI Ports; Panel Mountable to 1/4 Inch Thickness; Bi-Directional Flow; Handle Indicates Direction of Flow; Full Operating Pressure at any Port; Positive Handle Stops; Color Coded Handles; 100% Factory Tested; Vent Option; Manual, Electric or Pneumatic Actuation; Leak-Tight Center-Off Position on Three-Way Valves

Series/Model Information

Parker MB Series Ball Valves, with their rugged compact design, offer positive shut off or directional control of fluids in process, power and instrumentation applications. The unique one piece seat/packing design insures excellent sealing characteristics while accommo dating a superior temperature range and cycle life. These valves are available in two-way and three-way configurations, brass and stainless steel construction, with a wide variety of port connections. Also, all ports are suitable as inlets to full operating pressure of the valve.

Inclusions

PTFE Connector O-Ring/Retainer Seal/Stem Seal, 316 Stainless Steel Stem Washer/Panel Mounting Nut/Seat Retainer/Packing Nut/End Connector, Stainless Steel Handle Set Screw, Oxygen Service
