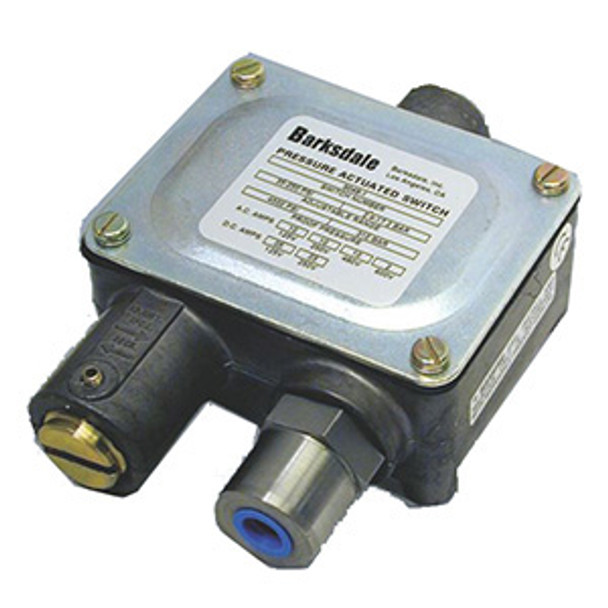

9048-1 Barksdale Pressure Switch

9048-1
$239.00 / Each
  • Application: Compactor, Compressor, Hydraulic Power Unit, Hydraulic Press, Machine Tool
  • Approval: UL
  • Connection Type: 1/4 Inch-18 TPI Female Threaded
  • Contact Configuration: SPDT
  • Contact Rating: 10 A @ 125/250/480 VAC, 0.03 A @ 250 VDC
  • Enclosure: NEMA 13
  • Enclosure Material: Anodized Aluminum
  • Operating Pressure Rating: 35 to 250 PSI
  • Operator Type: Rugged Buna-N O-Ring/440 Stainless Steel Piston
  • Product Type: Pressure Switch

Barksdale 9048 Series Pressure Switch, 1/4"-18 TPI FPT, 125/250/480 VAC/250 VDC, 10/0.03 A, 35 to 250 PSI, SPDT, NEMA 13, Rugged Buna-N O-Ring/440 Stainless Steel Piston, Single Circuit, Pressure Switch.

Browse All Barksdale Products

QTY

Contact Our Process Control Experts

Contact our experts to answer questions or help you with your application needs.

Services

  • Distribution of components services
  • On-site inventory management
  • Factory Automation Services
  • Product expediting
  • Product obsolescence notifications and replacements
  • Kitting and packaging
  • Custom labeling

Product Description

Pressure Switch; Type Single Circuit; Operator Type Rugged Buna-N O-Ring/440 Stainless Steel Piston; Operating Pressure Rating 35 to 250 PSI; Contact Configuration SPDT; Contact Rating 10 Amp at 125/250/480 Volt AC, 0.03 Amp at 250 Volt DC; Connection Type 1/4 Inch-18 TPI Female Threaded; Enclosure NEMA 13; Enclosure Material Anodized Aluminum; Application Machine Tool, Hydraulic Press, Compactor, Hydraulic Power Unit, Compressor; Approval UL; Accuracy +/-2 Percent; Electrical Connection 1/2 Inch Threaded Conduit Connection to Screw Terminal; Process Connection Material 416 Stainless Steel; Temperature Rating -40 to 165 Deg F (Operating), -40 to 200 Deg F (Storage)

Features/Benefits

High reliability; Extremely long life; Oil & dust tight; Easy setpoint adjustment; High proof pressure; Rugged design
