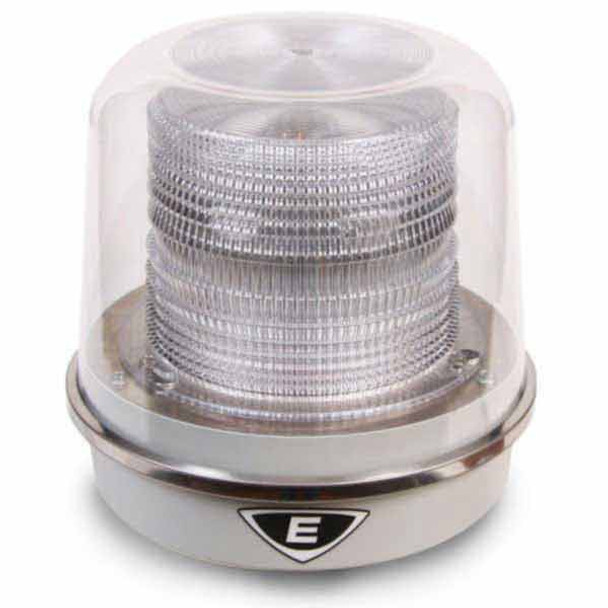

Edwards Multi-Mode LED Beacon

94PLEDMW24AD
$540.39 / EA
  • Refine Search: Fire Safety
  • Manufacturer: Edwards Signaling
  • Product Family: 94 Series
  • Product Type: Beacons
94PLEDMW24AD Edwards Signaling 94 Series Multi-Mode LED Beacon, suitable for indoor or outdoor applications, gray base, NEMA Type 4X enclosure, conduit mount, white colored LED, 148000 hours of lamp life, 12/DC, 24/AC/DC, 0.7A/0.55A.
QTY

Contact Our Motion Control & Automation Experts

Contact our experts to answer questions or help you with your application needs.

Services

  • Control & Automation Engineering
  • Control Panel Services
  • Control System Design
  • Machine Vision Services
  • Maint/Repair Service Contracts
  • PLC Services
  • Rexroth Indramat Repair Center

Product Description

94PLEDMW24AD Edwards Polaris Class 94 Series LED beacons are NEMA Type 4X and IP66 rated visual signals suitable for use in indoor and outdoor applications. The units are field configurable with up to seven flashing patterns, including steady-on, utilizing a “Hidden In Plain Sight” (HIPS) switch. The inner, double fresnel lens is made of a high grade polycarbonate and is designed to magnify the ultra-bright LED’s inside. A clear, outer, impact- resistant polycarbonate dome offers additional protection against accidental impacts with machinery or falling objects. It also acts as a protective and simple to clean “dust and residue” cover. The 94 Series beacons are designed to be mounted on 3/4 inch NPT conduit (indoor or outdoor). For outdoor installation and to maintain the NEMA and IP ratings, the beacon must be mounted with the dome facing directly up. When installing the beacon indoors in dry environments, it can be mounted in any position. The 94 Series housing has a cast base that can function as a junction box. The Polaris Class is designed for any industrial or commercial applications that require the longevity of an LED and the brightness of a xenon strobe. These units are very effective in high noise areas where ear protection is worn or audible signals may not be heard.

FEATURES
  • Multi-mode LED (steady-on plus seven flash patterns)
  • LED light source
  • Six lens colors
  • 3/4" (19mm) NPT threaded conduit
  • Hidden in Plain Sight (HIPS) switch
  • High level of immunity to shock and vibration
  • Black or gray base option
  • Cast base can function as junction box
  • NEMA Type 4X and IP66 rated
  • Operating temperature range

Dimension Drawing
