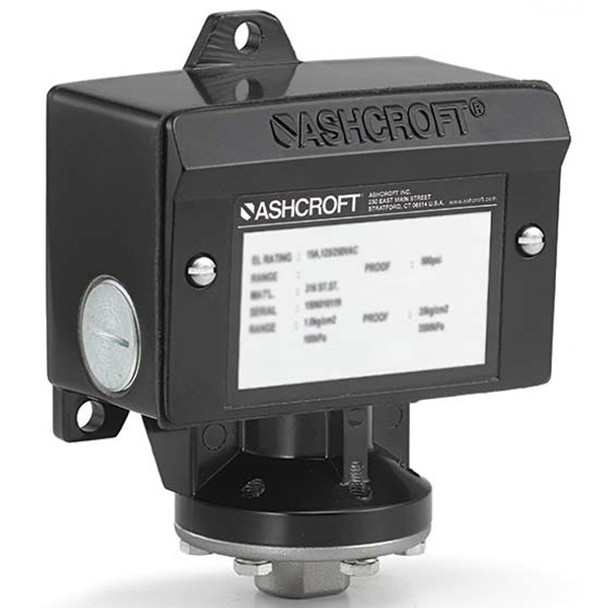

Ashcroft Pressure Switch

Request for Quote
  • Product Type: Pressure Switch
  • Manufacturer: Ashcroft
  • Product Family: Type 400, B4
  • Application: Chemical and Petrochemical Plant Pulp and Papermill, Offshore Oil Rig, Power Plant, Steel Mill, Water and Sewage-Treatment Plant
  • Approval: CE, CRN, Sil 3 Capable, UL/CSA (Canada and US)
  • Connection Type: 1/4 in. Female Threaded
  • Contact Configuration: SPDT
  • Enclosure: IP66, NEMA 3/4/4X/13
  • Enclosure Material: Epoxy Coated Aluminum
  • Operating Pressure Rating: 60 PSI
  • Operator Type: Rugged Diaphragm/Buna-N Sealed Piston Actuator
  • Pressure Media: Water
Ashcroft B4, Type 400 Pressure Switch, 1/4" FPT, 125/250 VAC, 15 A, SPDT, 60 PSI, NEMA 3/4/4X/13, IP66, Epoxy Coated Aluminum, Direct/Surface Mount, Rugged Diaphragm/Buna-N Sealed Piston Actuator, Water Tight, Manual Reset Trip on Decreasing, Single Setpoint, Pressure Switch.

Contact Our Process Control Experts

Contact our experts to answer questions or help you with your application needs.


  • Distribution of components services
  • On-site inventory management
  • Factory Automation Services
  • Product expediting
  • Product obsolescence notifications and replacements
  • Kitting and packaging
  • Custom labeling

Product Description

Pressure Switch; Type Water Tight, Manual Reset Trip on Decreasing, Single Setpoint; Operator Type Rugged Diaphragm/Buna-N Sealed Piston Actuator; Operating Pressure Rating 60 PSI; Pressure Media Water; Contact Configuration SPDT; Contact Rating 15 Amp at 125/250 Volt AC; Connection Type 1/4 Inch Female Threaded; Enclosure NEMA 3/4/4X/13, IP66; Enclosure Material Epoxy Coated Aluminum; Application Offshore Oil Rig, Chemical and Petrochemical Plant Pulp and Papermill, Steel Mill, Power Plant, Water and Sewage-Treatment Plant; Approval UL/CSA (Canada and US), CE, CRN, Sil 3 Capable; RoHS Complaint; Mounting Type Direct, Surface; Accuracy +/-1 Percent; Temperature Rating -20 to 150 Deg F (Ambient), 0 to 150 Deg F (Process)


Adjustable setpoints 15-100% of range; Special designs for NACE & fire application; Highly reliable; Designed for use in wide range of application; Internal set point lock screw; RoHS Complaint

Series Information

The Ashcroft® B4 pressure switch is designed for use in virtually all industrial and OEM applications. Providing reliability and long-cycle life, it is ideal for satisfying requirements for pressure control, shutdown or alarm operations. Special designs are available to meet NACE and Fire-safe applications.
