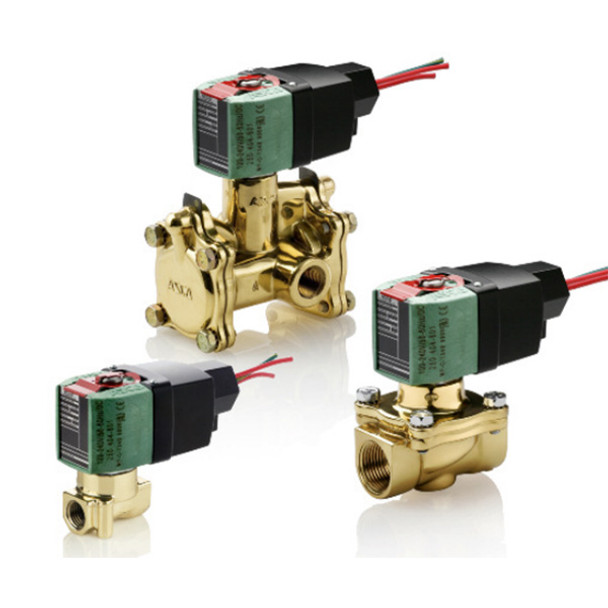

EE8210P094 100-240 ASCO Electronically Enhanced Solenoid Valve

EE8210P094 100-240
Request for Quote
ASCO Electronically Enhanced Solenoid Valve
  • Media Handled: Air-Inert Gas, Water
  • Port Connection: 1/2 in. Female Threaded x 1/2 in. Female Threaded
  • Temperature Rating: 180°F (Fluid)
  • Valve Position: Normally Closed
  • Application: Air Compressor, Car Wash, Industrial Water Control, Laundry Equipment, Pump
  • Approval: CE, CSA, UL
  • Body Material: Brass
  • Enclosure: Class 1, Div 2, NEMA 3/3S/4/4X
  • Input Supply Rating: 100 to 240 VAC/DC
  • Pressure Rating: 0 to 150 PSI (Air-Inert Gas/Water)
  • Type: 2-Way/2-Position

ASCO RedHat Series 8210 Electronically Enhanced Solenoid Valve, 1/2" x 1/2", FPT x FPT, 100 to 240 VAC/VDC, 2 W, 0 to 150 PSI, Brass, NEMA 3/3S/4/4X/Class 1 Div 2, NC, 2-Way/2-Position, Electronically Enhanced Solenoid Valve for Air-Inert Gas/Water.

Browse All Series 8210 Products

Browse All ASCO Products

QTY
Add To Favorites

Contact Our Process Control Experts

Contact our experts to answer questions or help you with your application needs.

Services

  • Distribution of components services
  • On-site inventory management
  • Factory Automation Services
  • Product expediting
  • Product obsolescence notifications and replacements
  • Kitting and packaging
  • Custom labeling
1-800-227-0305Contact an Expert

Product Description

Electronically Enhanced Solenoid Valve; Type 2-Way/2-Position; Port Connection 1/2 Inch Female Threaded x 1/2 Inch Female Threaded; Valve Position Normally Closed; Body Material Brass; Enclosure Type NEMA 3/3S/4/4X, Class 1, Div 2; Input Supply Rating 100 to 240 Volt AC/DC; Temperature Rating 180 Deg F (Fluid); Pressure Rating 0 to 150 PSI (Air-Inert Gas/Water); Media Handled Air-Inert Gas, Water; Inclusions/Features NBR Seal, Hazardous Location, Safety Shut-Off; Application Car Wash, Laundry Equipment, Air Compressor, Industrial Water Control, Pump; Applicable Standard UL, CSA, CE; RoHS 2 Compliant; Power Rating 2 Watt; Coil Insulation Type Class H; Orifice Size 5/8 Inch; Ambient Temperature Rating 14 to 140 Deg F; Flow Factor 4 Cv; Cycle Rate 1 Operation/Second

Features/Benefits

Lower power operation; Voltage ranging; Built-in surge suppression; Elimination of AC hum; Increase in AC and DC operating temperatures; Low solenoid temperature rise; Longer coil life due to lower operating temperatures and electrical surge suppression; Next Generation solenoid valves have one inlet port and one outlet port; Control of air, water, light oil, and non-corrosive media; RoHS 2 Compliant

Inclusions/Features

NBR Seal, Hazardous Location, Safety Shut-Off,
