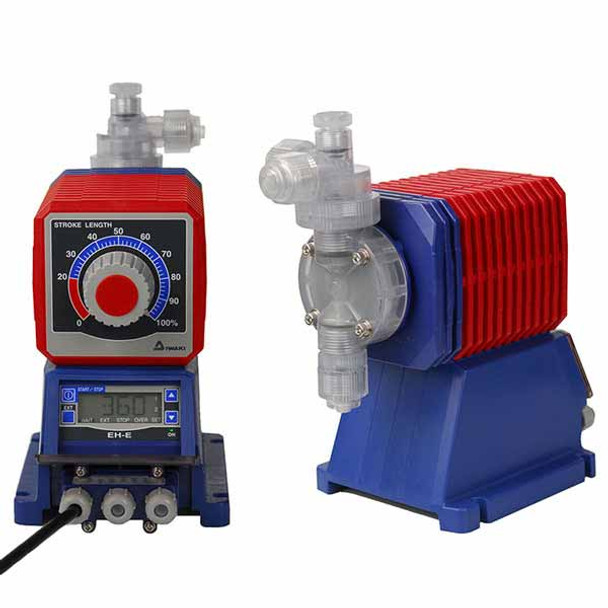

EHE31E1-PC Walchem EHE Series Metering Pump 5.5GPH 150psig GFRPP

$1,427.00 / Each
  • Product Type: Electronic Metering Pump
  • Diaphragm: PTFE/EPDM
  • Gasket: PTFE
  • Max. Output Capacity: 5.5 GPH
  • Max. Pressure: 150 PSIG
  • Pump Head: GFRPP
  • Valve Seat: PCTFE

Walchem EHE Series Metering Pump, solenoid pump, microprocessor control w/ext pulse & MAAV, 5.5GPH @ 150psig max, GFRPP head/fittings, PTFE/EPDM diaphragm, CE balls, PCTFE seat, AFLAS seals, PTFE gasket, 1/2 OD, 115AC 1.8A 48W. Use E31PC-PK parts kit

Browse All EHE Series Products

Browse All Walchem Products


Contact Our Process Control Experts

Contact our experts to answer questions or help you with your application needs.


  • Distribution of components services
  • On-site inventory management
  • Factory Automation Services
  • Product expediting
  • Product obsolescence notifications and replacements
  • Kitting and packaging
  • Custom labeling

Product Description

The EHE is the workhorse of the E-Series metering pumps. EHE Series pumps have outputs up to 20 GPH (75 l/h) and pressure capabilities to 150 PSI (10 bar). Combining the EHE performance with a turndown ratio of 1800:1 yields one of the most versatile pumps in the water treatment industry today. Superior mechanical design and quality manufacturing merge to create a pump better than the sum of its parts. The versatile control features enable the EHE to be integrated into virtually any chemical feed application. The 360 strokeper-minute operation results in high resolution chemical feed and long service life. EHE pumps prime in seconds and hold prime reliably.

Dimension Drawing
