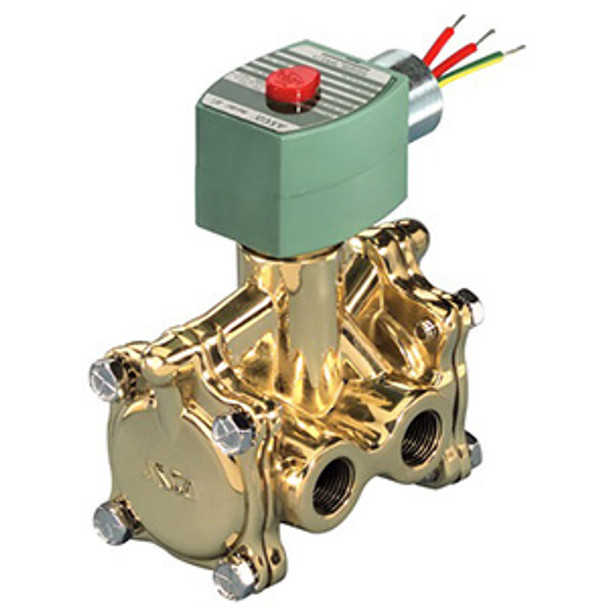

ASCO Zero Minimum Solenoid Valve

EV8316G081V 24/DC
Request for Quote
  • Manufacturer: ASCO
  • Product Family: Series 8316
  • Application: Analytical and Diagnostic Equipment, Biofuel, Dust Collector System, Heating Equipment, Refining
  • Approval: CE, CSA, UL
  • Body Material: 316 Stainless Steel
  • Enclosure: NEMA 3/3S/4/4X/6/6P/7/9
  • Input Supply Rating: 24 VDC
  • Media Handled: Air-Inert Gas
  • Port Connection: 1/4 in. Female Threaded x 1/4 in. Female Threaded x 1/4 in. Female Threaded
  • Pressure Rating: 120 PSI (Air)
  • Temperature Rating: 120°F (Fluid)
  • Type: 3-Way/2-Position, Air Piloted, Spring Return, Shutdown System
  • Valve Position: Normally Closed
ASCO RedHat Series 8316 Zero Minimum Solenoid Valve, 1/4" x 1/4" x 1/4", FPT x FPT x FPT, 24 VDC, 11.6 W, 120 PSI, 316 Stainless Steel, NEMA 3/3S/4/4X/6/6P/7/9, NC, 3-Way/2-Position, Air Piloted, Spring Return, Shutdown System, Zero Minimum Solenoid Valve with FKM Seal for Air-Inert Gas.
QTY

Contact Our Process Control Experts

Contact our experts to answer questions or help you with your application needs.

Services

  • Distribution of components services
  • On-site inventory management
  • Factory Automation Services
  • Product expediting
  • Product obsolescence notifications and replacements
  • Kitting and packaging
  • Custom labeling

Product Description

Zero Minimum Solenoid Valve; Type 3-Way/2-Position, Air Piloted, Spring Return, Shutdown System; Port Connection 1/4 Inch Female Threaded x 1/4 Inch Female Threaded x 1/4 Inch Female Threaded; Valve Position Normally Closed; Body Material 316 Stainless Steel; Enclosure Type NEMA 3/3S/4/4X/6/6P/7/9; Input Supply Rating 24 Volt DC; Temperature Rating 120 Deg F (Fluid); Pressure Rating 120 PSI (Air); Media Handled Air-Inert Gas; Inclusions/Features Low Temperature FKM Seal, 316 Stainless Steel End Plate, 305 Stainless Steel Core Tube, Cellulose Acetate Core Guide, Silver Shading Coil, Water Tight, Stainless Steel Explosionproof; Application Analytical and Diagnostic Equipment, Biofuel, Dust Collector System, Heating Equipment, Refining; Applicable Standard CSA, CE, UL; Power Rating 11.6 Watt; Coil Insulation Type Class F; Orifice Size 5/16 Inch; Ambient Temperature Rating -20 to 104 Deg F; Flow Factor 1.5 Cv

Features/Benefits

stainless steel for corrosive atmospheres; Can be internally piloted, or externally piloted to convert valve to zero minimum operation by flipping a gasket; When externally piloted, loss of electrical power or auxiliary air exhausts air from the actuator and shifts process valve to its original position; When internally piloted, loss of electric power returns the valve to its original position

Inclusions/Features

Low Temperature FKM Seal, 316 Stainless Steel End Plate, 305 Stainless Steel Core Tube, Cellulose Acetate Core Guide, Silver Shading Coil, Water Tight, Stainless Steel Explosionproof,
