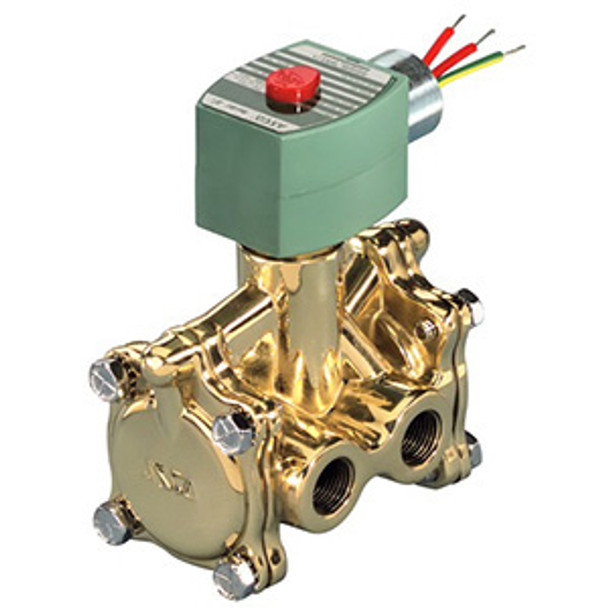

EV8316G384VMB 24/DC ASCO Low Power Solenoid Valve

EV8316G384VMB 24/DC
$790.50 / Each
  • Media Handled: Air-Inert Gas
  • Port Connection: 1/2 in. Female Threaded x 1/2 in. Female Threaded x 1/2 in. Female Threaded
  • Temperature Rating: 140°F (Fluid)
  • Valve Position: Normally Closed
  • Application: Analytical and Diagnostic Equipment, Biofuel, Dry Natural Gas Service, Dust Collector System, Heating Equipment, Refining
  • Approval: ATEX/IECEx, CE, CSA, Exida, FMEDA, SIL 3, UL
  • Body Material: Stainless Steel
  • Enclosure: NEMA 3/3S/4/4X/6/6P/7/9
  • Input Supply Rating: 24 VDC
  • Pressure Rating: 15 to 150 PSI (Air-Inert Gas)
  • Type: 3-Way/2-Position, 1-Piece

ASCO RedHat Series 8316 Low Power Solenoid Valve, 1/2" x 1/2" x 1/2", FPT x FPT x FPT, 24 VDC, 1.4 W, 15 to 150 PSI, Stainless Steel, NEMA 3/3S/4/4X/6/6P/7/9, NC, 3-Way/2-Position, 1-Piece, Low Power Solenoid Valve with FKM Seal and Mounting Bracket for Air-Inert Gas.

Browse All Series 8316 Products

Browse All ASCO Products

QTY

Contact Our Process Control Experts

Contact our experts to answer questions or help you with your application needs.

Services

  • Distribution of components services
  • On-site inventory management
  • Factory Automation Services
  • Product expediting
  • Product obsolescence notifications and replacements
  • Kitting and packaging
  • Custom labeling

Product Description

Low Power Solenoid Valve; Type 3-Way/2-Position, 1-Piece; Port Connection 1/2 Inch Female Threaded x 1/2 Inch Female Threaded x 1/2 Inch Female Threaded; Valve Position Normally Closed; Body Material Stainless Steel; Enclosure Type NEMA 3/3S/4/4X/6/6P/7/9; Input Supply Rating 24 Volt DC; Temperature Rating 140 Deg F (Fluid); Pressure Rating 15 to 150 PSI (Air-Inert Gas); Media Handled Air-Inert Gas; Inclusions/Features FKM Disc, 304L Stainless Steel Sleeve, 430F Stainless Steel Core and Plugnut, 302 Stainless Steel Core Spring, Cellulose Acetate Pilot Seat Cartridge/Spring Retainer, PTFE Rider Ring, Water Tight, Stainless Steel Explosionproof, Mounting Bracket, General Service; Application Analytical and Diagnostic Equipment, Biofuel, Dust Collector System, Heating Equipment, Refining, Dry Natural Gas Service; Applicable Standard CSA, CE, UL, ATEX/IECEx, SIL 3, FMEDA, Exida; Power Rating 1.4 Watt; Coil Insulation Type Class F; Orifice Size 5/8 Inch; Ambient Temperature Rating -20 to 140 Deg F; Flow Factor 4 Cv (Pressure to Cylinder/Cylinder to Exhaust)

Features/Benefits

Molded one-piece solenoid with highly efficient solenoid cartridge and special low wattage coil; Designed for use in automation of plant control systems to provide PLC compatibility, Reduced battery drain, Reduced heat rise, Reduced wiring cost; Lower-cost alternative to intrinsically safe valves in critical applications not requiring a safety barrier

Inclusions/Features

FKM Disc, 304L Stainless Steel Sleeve, 430F Stainless Steel Core and Plugnut, 302 Stainless Steel Core Spring, Cellulose Acetate Pilot Seat Cartridge/Spring Retainer, PTFE Rider Ring, Water Tight, Stainless Steel Explosionproof, Mounting Bracket, General Service,
