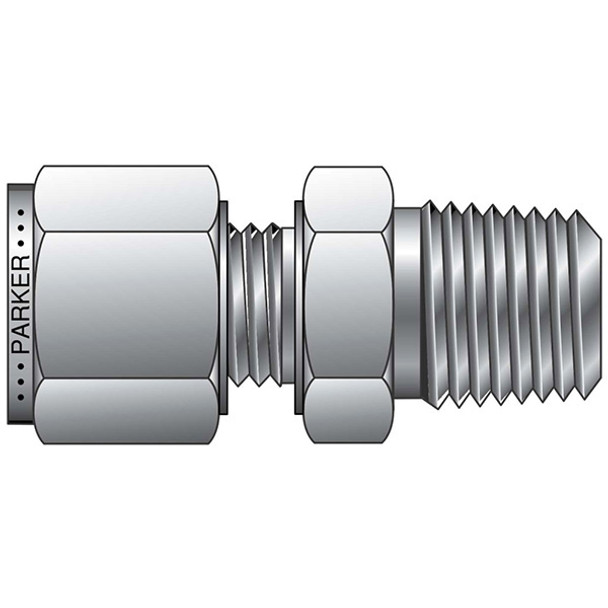

FBZ 14-1/2-SS Parker Compression Fitting

FBZ 14-1/2-SS
Request for Quote
  • Application: Heat Trace System, Instrument Air Line, Process Line
  • Designated Size: 14 Millimeter x 1/2 Inch
  • End Connection: Tube x Male Threaded
  • Material: 316 Stainless Steel
  • Material Specification: ASTM A276/ASME SA479/BS970 316-S31/DIN 4401
  • Pressure Rating: 6600 PSI
  • Process: Cold Finished Bar Stock
  • Product Type: Compression Fitting

Parker Instrumentation FBZ Series Compression Fitting, 14 MM x 1/2", Tube x MPT, 6600 PSI, Cold Finished Bar Stock 316 Stainless Steel, Single Ferrule, Reducing, Compression Fitting.

Browse All Parker Hannifin Products

QTY

Contact Our Process Control Experts

Contact our experts to answer questions or help you with your application needs.

Services

  • Distribution of components services
  • On-site inventory management
  • Factory Automation Services
  • Product expediting
  • Product obsolescence notifications and replacements
  • Kitting and packaging
  • Custom labeling

Product Description

Compression Fitting; Item Compression Fitting; Type Single Ferrule, Reducing; Designated Size 14 Millimeter x 1/2 Inch; End Connection Tube x Male Threaded; Material 316 Stainless Steel; Material Specification ASTM A276/ASME SA479/BS970 316-S31/DIN 4401; Process Cold Finished Bar Stock; Pressure Rating 6600 PSI; Application Instrument Air Line, Heat Trace System, Process Line; Hex Size 24 Millimeter; Used for Metric Tube

Features/Benefits

Single Ferrule for Easy Makeup; Molybdenum Disulfide Coated Nut for Low Torque Makeup; Suparcase Ferrule for Superior Corrosion Resistant; Hardened Ferrule Provide Optimum Performance

Series Information

Parker CPI™ single ferrule Tube tube fittings are designed as leak free connections for process, power and instrumentation applications. These tube fittings utilize a single ferrule for easy make-up and excellent performance in vibration applications. The "spring loaded" effect of the single ferrule creates a constant tension between the fitting body and fitting nut. CPI™ tube fitting are manufactured from heat code traceable 316 stainless steel. Other materials include 6Mo, Alloy 825, Alloy 625 and Alloy C-276. Straight fittings are machined from cold finished bar stock, while shaped bodies are machined from close grain forgings.

Additional Product Information

Compression Fitting; Item Compression Fitting; Type Single Ferrule, Reducing; Designated Size 14 Millimeter x 1/2 Inch; End Connection Tube x Male Threaded; Material 316 Stainless Steel; Material Specification ASTM A276/ASME SA479/BS970 316-S31/DIN 4401; Process Cold Finished Bar Stock; Pressure Rating 6600 PSI; Application Instrument Air Line, Heat Trace System, Process Line; Hex Size 24 Millimeter; Used for Metric Tube
