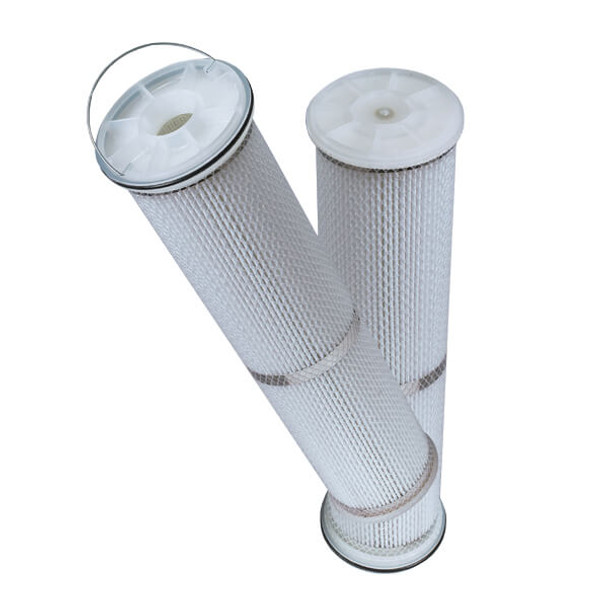

HRDP-5-PE-12-SC-E Cardinal HRDP Series Cartridge Filter PE 12in SC 5uma

$129.00 / Each
  • Cap Style: Small Cap
  • Efficiency: Absolute
  • Filter Media: Polyester
  • Filter Type: Deep Pleat
  • Finish: Plain
  • Length: 12 in.
  • Micron: 5 Microns
  • O-Ring: EPDM
Cardinal HRDP Series Liquid Filter Cartridge for size #2 bag housings, 99 pct abs @ 5 micron, 35 ft2 of deep pleated polyester media, 12 in cartridge length, small cap with EPDM cap seal, 25 psid @ 30 gpm max.

Contact Our Filtration Experts

Contact our Filtration experts to answer questions or help you with any application needs

Filtration Services:

  • Filtration consulting
  • Audits
  • Engineering and design
  • On-site training and support

Product Description

HRDP Series

Introducing the Cardinal absolute rated Deep Pleat Liquid Filter Cartridge for bag housings in filtration ranges from 1 to 40 microns with 99% removal efficiency.

The unique design of our deep pleated bag-sized cartridge provides up to 35 ft2 filtration surface area when installed in most #1 and #2 standard bag/strainer baskets and extended life horizontal filter housings. The HRDP Series Deep Pleat Liquid Filter Cartridge will save time and potentially reduce overall cost of filtration by reducing change-out cycles maximizing your on-stream service life. Our multi-layered highly efficient pleated filtration media design provides both a graded density and high dirt holding capacity.

The inside-to-out flow HRDP cartridge is designed to fit into existing baskets and includes a captured O-ring seal without housing modifications.
