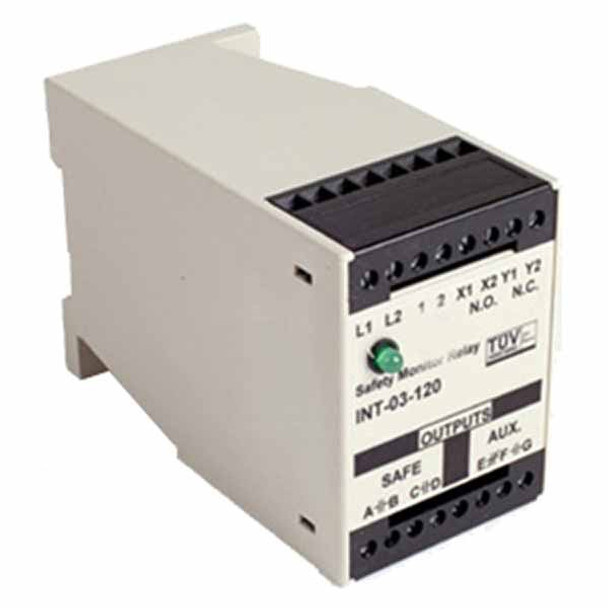

INT-03-120 Sentrol Monitor Relay

$0.00 / EA
In Stock
  • Product Type: Monitor Relays
  • Manufacturers: Sentrol
  • Product Family: INT-03 Series
INT-03-120 Sentrol INT-03 Series Monitor Relay for use with 300-BT Series GuardSwitch, 120VAC, 80mA, 12 Guage, 32 to 149 F temp range.
  • Product Description
INT-03-120 The INT-03 Series Monitor Relay is intended for use as a part of a safety circuit in guard interlock applications. It is a safety relay which used positive-guided relays, configured for self-checking, to inhibit machine start-up in the event of an internal component failure. Both normally-open and normally-closed inputs are required. Multiple N.O. contacts can be wired in series while multiple N.C. contacts can be wired in parallel. The INT-03 relay can also monitor contacts on external relays for controlling expansion block relays (INT-05 and INT-06).

  • Meets European Machine Safety Standards, Risk Category 4
  • Designed for use with 300-BT series GuardSwitch
  • Provides 2 safe outputs plus a form C output for signaling
  • Low current for longer GuardSwitch life
  • DIN Rail or panel mount & LED power on indicator
