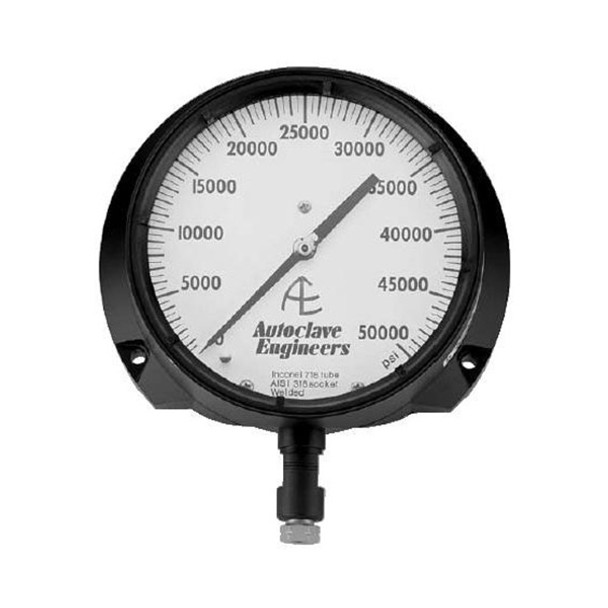

P-0489-CG Parker Instrument Quality Pressure Gauge

P-0489-CG
Request for Quote
  • Dial Size: 6"
  • Connection Location: Bottom
  • Display Type: Analog
  • Enclosure Material: Aluminum Alloy
  • End Connection: 1/4 in. F250C Female High Pressure Coned-and-Threaded
  • Full-Scale Accuracy: +/-0.5 Percent
  • Max. Pressure: 50000 PSI (3447 Bar)
  • Min. Pressure: 0 PSI/Bar
  • Pointer Type: Zero Adjustment
  • Sensor Element: Inconel 718 Bourdon Tube
  • Temperature Rating: -20 to 150 Deg F

Parker Instrumentation P Series Instrument Quality Pressure Gauge, 0 to 50000 PSI, 1/4" F250C Female High Pressure Coned-and-Threaded, 6" Dial, +/-0.5% Accuracy, Aluminum Alloy Case, Analog Display, Instrument Quality Pressure Gauge.

Browse All Parker Hannifin Products

QTY

Contact Our Process Control Experts

Contact our experts to answer questions or help you with your application needs.

Services

  • Distribution of components services
  • On-site inventory management
  • Factory Automation Services
  • Product expediting
  • Product obsolescence notifications and replacements
  • Kitting and packaging
  • Custom labeling

Product Description

Instrument Quality Pressure Gauge; Minimum Pressure 0 PSI/Bar; Maximum Pressure 50000 PSI, 3447 Bar; Display Type Analog; Enclosure Material Aluminum Alloy; End Connection 1/4 Inch F250C Female High Pressure Coned-and-Threaded; Connection Location Bottom; Sensor Element Inconel 718 Bourdon Tube; Dial Diameter 6 Inch; Pointer Type Zero Adjustment; Temperature Rating -20 to 150 Deg F; Full Scale Accuracy +/-0.5 Percent; Minor Interval Value 500 PSI; Dial Cover Material Plastic; Applicable Standard ISO 9001

Features/Benefits

Blow-Out Back Panel for Pressure Relief in the Event of Bourdon Tube Failure; Precision Stainless Steel Movement for Accuracy and Resistance to Atmospheric Corrosion; Pointer Zero Adjustment Located on Front of Gauge Behind Dial Cover for Convenience

Additional Product Information

Instrument Quality Pressure Gauge; Minimum Pressure 0 PSI/Bar; Maximum Pressure 50000 PSI, 3447 Bar; Display Type Analog; Enclosure Material Aluminum Alloy; End Connection 1/4 Inch F250C Female High Pressure Coned-and-Threaded; Connection Location Bottom; Sensor Element Inconel 718 Bourdon Tube; Dial Diameter 6 Inch; Pointer Type Zero Adjustment; Temperature Rating -20 to 150 Deg F; Full Scale Accuracy +/-0.5 Percent; Minor Interval Value 500 PSI; Dial Cover Material Plastic; Applicable Standard ISO 9001
