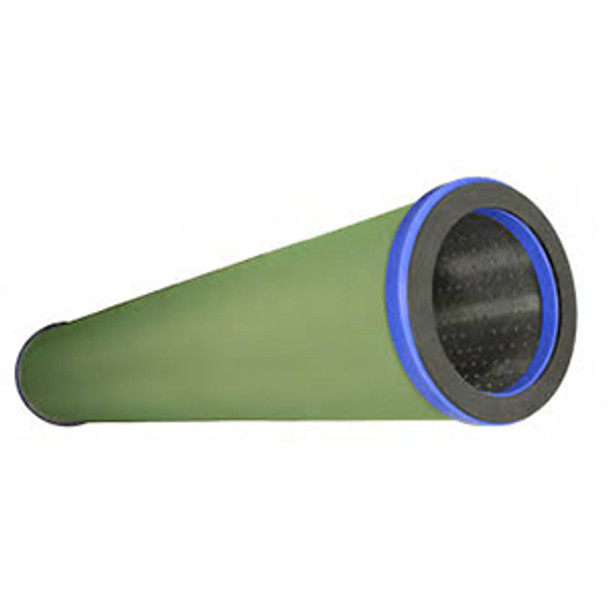

Parker Filter Separator Cartridge

SO-616PLF3
Request for Quote
  • Manufacturer: Parker Velcon
  • Product Family: SO Series
  • Materials: Paper (Media)
  • Service: Fuel
  • Size: 3.5 in. ID x 6 in. OD x 16 in. L
  • Product Type: Cartridge
  • Refine Search: Separator
Parker Velcon SO Series Filter Separator Cartridge, 3.5" ID x 6" OD x 16" L, 5 to 9 pH, Paper Media, Buna-N Seal, Fuel, Open End Cap, Uniform Tube, 2-Stage, Pleated, Outside to Inside Flow, Filter Separator Cartridge.
QTY

Contact Our Filtration Experts

Contact our Filtration experts to answer questions or help you with any application needs

Filtration Services:

  • Filtration consulting
  • Audits
  • Engineering and design
  • On-site training and support

Product Description

Filter Separator Cartridge; Type Cartridge, 2-Stage, Pleated, Outside to Inside Flow; Size 3.5 Inch Inside Diameter x 6 Inch Outside Diameter x 16 Inch Length; Material Paper (Media); Service Fuel; Tube Type Uniform; Seal Material Buna-N; Temperature Rating 200 Deg F; End Cap Configuration Open; pH Range 5 to 9; Application Aviation, Industrial

Features/Benefits

Optimum Second Stage Water Removal; Field Proven Performance; Largest Selection of Replacement Elements

Series/Model Info

Separator Cartridges are employed as the second stage in filter/separator vessels. Their sole function is to repel coalesced water drops produced by the first stage cartridges while allowing hydrocarbon fluids to pass through. Water drops settle into the filter/separator sump and are not carried downstream. All particle filtering is done by the first stage coalescer cartridge.
