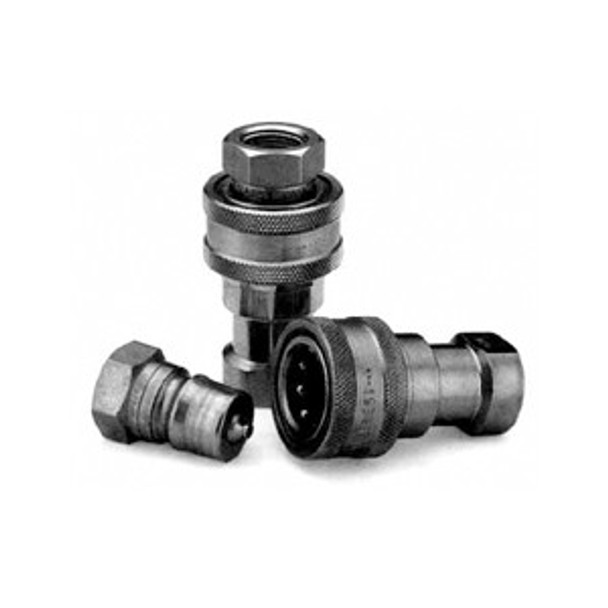

SSH1-62Y Parker 60 Series Female Thread Stainless Steel Coupler
SSH1-62Y
$129.08
/ Each
- Body Size: 1/8 in.
- Body Type: Coupler (Female Half)
- Port Connection: FNPT
- Refine Search: Couplers
- Port Size: 1/8-27 in.
- Product Type: Coupling
Parker 60 Series General Purpose Coupling, 1/8 316 stainless Steel coupler (female half), 2000 psig rating, 1/8" FNPT ends, Viton seal
QTY
Contact Our Process Control Experts
Contact our experts to answer questions or help you with your application needs.
Services
- Distribution of components services
- On-site inventory management
- Factory Automation Services
- Product expediting
- Product obsolescence notifications and replacements
- Kitting and packaging
- Custom labeling
Product Description
The Parker 60 Series general purpose quick coupling is used across the spectrum of hydraulic applications. This double shut-off coupling can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable. Primarily used with hydraulic fluid, these quick couplers are also used with chemicals, water, steam, and some gases.
- Large flow areas machined into the coupler body and nipple for a high flow capacity
- Positive valve stop to ensure that the valves open fully, every time
- Captive valve seal assures "bubble tight" poppet sealing
- Seal design withstands high pressures and provides reliable sealing
- Durable ball-locking mechanism assures reliable connection, every time
- Industry-wide interchangeability
Dimension Drawing
