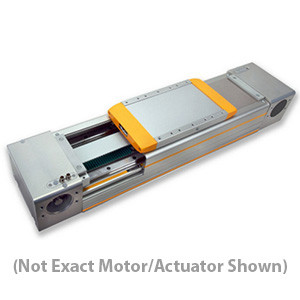

Parker Electromechanical HMRB Series Electric Linear Actuators, 700 mm, 66 mm/rev pulley & 5:1 gearbox, Stepper

VES-HMRB08B0700-ST
Request for Quote
  • Product Type: Electric Linear Actuators
  • Manufacturer: Parker Electromechanical
  • Product Family: HMRB Series
  • Availability: Short (2-5 weeks)
  • Price: $$
  • Customizability: High
  • Repeatability: +/-50 micron
  • Normal Load: 180 kg
  • Feed Constant: 66 mm/Rev Pulley
  • Frame Size: 85 mm
  • Drive Train: Belt & Pulley
  • Form Factor: Rodless
  • Motor: Stepper
  • Axial Force: 295 N
  • Stroke: 700 mm
  • Peak Speed: 2000 mm/s
Parker Electromechanical HMRB Series Electric Linear Actuators, 700 mm, 66 mm/rev pulley & 5:1 gearbox, Stepper motor, ball bearing guide, Basic profile, no outer cover, 180 kg normal load, +/- 50 micron repeatability, 2000 mm/s peak speed. Customizable and many options to select from: carriages, sensors, environmental ratings, motor direction, etc. Motor will limit the actuator's performance depending upon the application. Sizing calculations need to be performed to ensure performance.
QTY

Contact Our Motion Control & Automation Experts

Contact our experts to answer questions or help you with your application needs.

Services

  • Control & Automation Engineering
  • Control Panel Services
  • Control System Design
  • Machine Vision Services
  • Maint/Repair Service Contracts
  • PLC Services
  • Rexroth Indramat Repair Center

Product Description

The High Moment Rodless (HMR) linear actuator series is one of the most user friendly and versatile actuator lines on the market today. With 5 different frame sizes, 2 different drive train options, multiple mounting and carriage options, and an IP54 protective cover option, along with a multitude of other customizable features the HMR was truly designed with flexibility in mind with many features:

  • 5 profile sizes: 85, 110, 150, 180 and 240mm
  • Dual drive train: Precision ground ball screw or high efficiency timing belt
  • Load capacity up to 26,600N
  • Max thrust to 5,560N (screw) and 4,000N (belt)
  • Standard strokes up to 4000mm (screw) and 6000mm (belt)
  • Max speed to 1.6 m/s (screw) and 5 m/s (belt)
  • 2 profile types: Basic and Reinforced
  • Tandem and bi-parting carriage options
  • Optional sensor locations: internal (protected under the cover) or external
  • IP54-rated cover option
  • Ambient temperature range: -20C to +80C

Dimension Drawing
