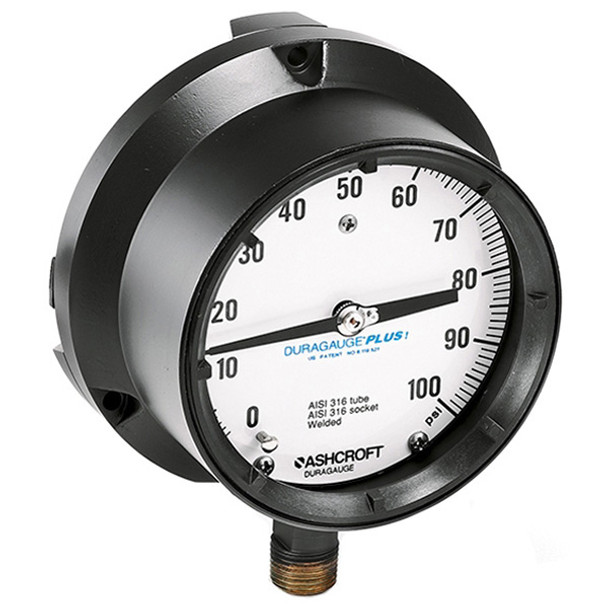

451379ASL02L160# Ashcroft Pressure Gauge
- Dial Size: 4-1/2"
- Connection Location: Lower Mount
- Filled: Glycerin
- Dial Material: Aluminum
- Display Type: Dial
- Enclosure Rating: IP66, NEMA 4X
- Full-Scale Accuracy: +/-0.5 Percent
- Max. Pressure: 160 PSI
- Min. Pressure: 0 PSI
- Mounting Type: Stem/Surface/Flush
- Pointer Material: Aluminum
- Pointer Type: Micrometer Adjustable
- Sensor Element: C510 Phosphor Bronze Bourdon Tube/Brass Socket
- Temperature Rating: 20 to 150 Deg F (Ambient/Storage), -0 to 150 Deg F (Process)
- Enclosure Material: Black Epoxy Coated Rugged Aluminum
- End Connection: 1/4" Male Threaded
Ashcroft 1379 Pressure Gauge, 1/4" MPT, 0 to 160 PSI, +/-0.5% Accuracy, 4-1/2" Aluminum Dial, Micrometer Adjustable Pointer, C510 Phosphor Bronze Bourdon Tube/Brass Socket, Black Epoxy Coated Rugged Aluminum Case, Glass Window, Non-Stick Coated 400 Stainless Steel Rotary/Adjustable Movement, Silver Brazed Joint, Polypropylene Ring, Polycarbonate Back Cover, Glycerin Filled, Lower, Pressure Relief Back Solid Front, Single Scale, Pressure Gauge.
Pressure Gauge; Pressure Gauge Type Pressure Relief Back Solid Front, Single Scale; Minimum Pressure 0 PSI; Maximum Pressure 160 PSI; Mounting Type Stem/Surface/Flush; Display Type Dial; Enclosure NEMA 4X, IP66; Enclosure Material Black Epoxy Coated Rugged Aluminum; End Connection 1/4 Inch Male Threaded; Connection Location Lower; Sensor Element C510 Phosphor Bronze Bourdon Tube/Brass Socket; Dial Diameter 4-1/2 Inch; Dial Material Aluminum; Pointer Type Micrometer Adjustable; Pointer Material Aluminum; Filler Material Glycerin; Temperature Rating 20 to 150 Deg F (Ambient/Storage), -0 to 150 Deg F (Process); Full Scale Accuracy +/-0.5 Percent; Application Refinery, Chemical, Petrochemical Plant and Offshore Oil Rig, Water and Wastewater Pressure Control, Pulp and Paper, Mining and Metal, Equipment Skid, Specialized OEM Equipment, Cryogenics; Dial Baground White; Ring Material Polypropylene; Back Cover Material Polycarbonate; Window Material Glass; Joint Type Silver Brazed; Moment Details Non-Stick Coated 400 Stainless Steel Rotary/Adjustable; Applicable Standard CRN, ASME B40.100 Grade 2AFeatures/Benefits
Solid-front case design for safety; Uncompromised standards and material integrity; Corrosion resistance in many environmentsSeries Information
The Ashcroft®1379 Duragauge® process gauge provides dependability, safety and performance. Used throughout the served markets, its manufacture is continuously monitored to assure uncompromising standards and material integrity. An ideal choice for satisfying most applications and installation requirements.
