B Series Ball Valve

/ EA
In Stock

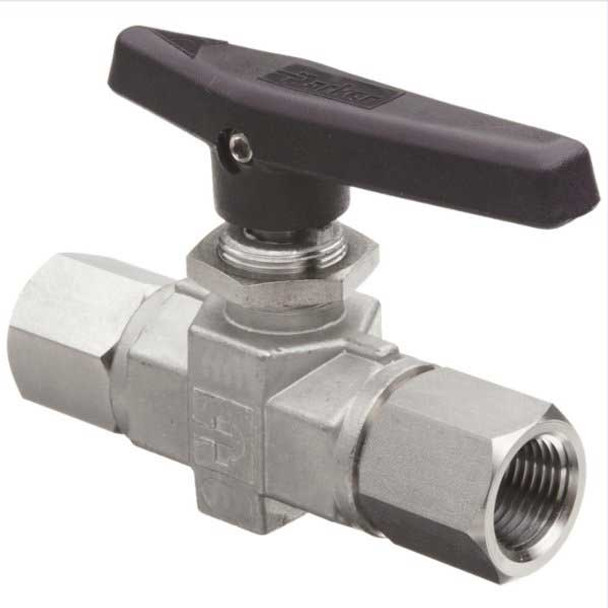

Parker Instrumentation B Series Ball Valve, 316 SS construction with panel mounting nut, 1/4 FPT connections, PTFE seat and stem, live-loaded PTFE packing with PTFE seals, black nylon T-handle, 6000 psig max.
  • Product Description
  • Dimension Drawing
Two-Way B Series Ball Valves


Parker Instrumentation manually, pneumatically, and electrically actuated two-way B Series Ball Valves provide quick 1/4 turn on-off control of fluids utilized in process and instrumentation applications. A broad selection of valve body, seat, and seal materials provide a wide range of pressures and temperatures at which the valve may be used.

  • Free floating ball design provides seat wear compensation.
  • Available in 316 stainless steel and brass construction. Monel® Alloy 400 and Hastelloy® C-276 construction available upon request.
  • Micro-finished ball provides a positive seal.
  • Straight through flow path for minimum pressure drop.
  • Bi-directional flow.
  • Wide variety of US Customary and SI ports.
  • 90° actuation.
  • Panel mountable.
  • Adjustable PTFE stem seal can be maintained in-line.
  • Handle indicates flow direction.
  • Low operating torques.
  • Positive handle stops.
  • Color coded handles.
  • Optional pneumatic and electric actuation.
  • Optional live-loaded PTFE stem seals.
  • Optional non-adjustable O-ring stem seals.
  • Optional upstream and downstream drain models.
  • Optional stainless steel and extended handles.
