Edwards LED Beacon with Horn

51XBRFG24D
Request for Quote
  • Refine Search: Audible & Visible Signals
  • Manufacturer: Edwards Signaling
  • Product Family: 51XBR Series
  • Decibels: 95 dB
  • Product Type: Beacons/Horns
  • Operating Temperature: -35 C to 66° C
  • Operating Voltage: 24VDC
  • Unit Type: Audio/Visual
  • Weight: 2.3 lb

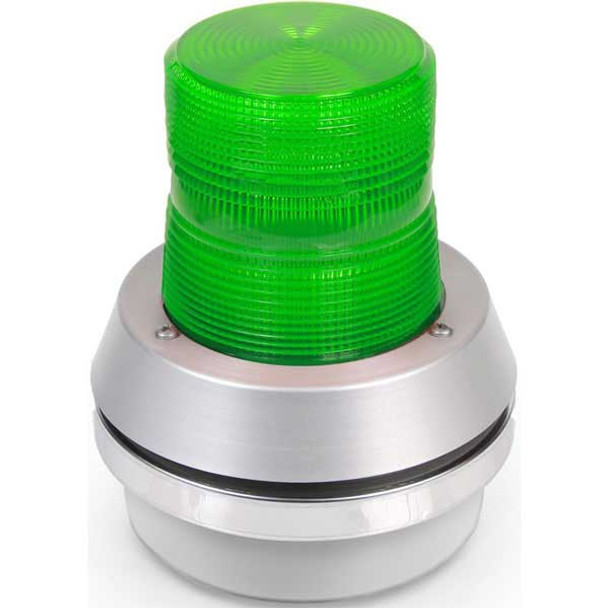

51XBRFG24D Edwards Signaling Green LED Beacon with Horn, 6 in W x 7.38 in H, 24VDC, Flashing, 95dB@1m, -35 C to 66 C max operating temperature.
QTY

Contact Our Motion Control & Automation Experts

Contact our experts to answer questions or help you with your application needs.

Services

  • Control & Automation Engineering
  • Control Panel Services
  • Control System Design
  • Machine Vision Services
  • Maint/Repair Service Contracts
  • PLC Services
  • Rexroth Indramat Repair Center

Product Description

51XBRFG24D Edwards 51XBR Series XTRA-BRITE LED beacons are combination visual and audible signaling devices, designed for indoor or outdoor applications. The integrated horn is synchronized with the flashing LED. The unit features a cast metal base that can be used as a junction box. The double fresnel lens is made of shatter-resistant polycarbonate, and is designed to magnify the superbright LED.

FEATURES
  • LED light source with integrated horn
  • Flash rate 65fpm
  • Shatter-resistant double fresnel polycarbonate lens
  • Immune to shock and vibration
  • Cast metal base
  • Suitable for indoor and outdoor applications
  • Horn is 95dB at 1 meter/85dB at 10ft.
  • Option for panel, conduit or wall mounting
  • Operating temperature range

Dimension Drawing

edwards beacon dimensions
