AC-5VLV-0004 AVENTICS™ Series 501 Directional Control Valves

AC-5VLV-0004
Request for Quote
In Stock
  • Product Type: Directional Valve
  • Product Family: 501 Series
AVENTICS™ Series 501 Directional Control Valve, 2 Position 4-Way, Double Solenoid
QTY

Contact Our Motion Control & Automation Experts

Contact our experts to answer questions or help you with your application needs.

Services

  • Control & Automation Engineering
  • Control Panel Services
  • Control System Design
  • Machine Vision Services
  • Maint/Repair Service Contracts
  • PLC Services
  • Rexroth Indramat Repair Center

Related Products & Accessories

Valin Endura SVD (Slit Valve Door) Replacement Manifold
AC-150-2321 Customer Part #:
Request for Quote
QTY

Product Description

AVENTICS™ Series 501 Directional Control Valves

The AVENTICS™ Series 501 is a line of general purpose automation valves designed for directional control and piloting applications requiring compact size, high flow capability, and energy savings. Engineers can achieve the flow of a 15 mm to 20 mm valve in a more compact package, saving space, cost, and energy in their machine designs. In addition, no other valve in its class offers such a broad range of pressure regulator, pressure shut-off, and exhaust flow control accessories. The 501 Series valve’s pressure shut —off option permits users to replace individual valves without stopping their production process — reducing line downtime and maintenance.

Features:
  • Modular design permits easy configuration and modification
  • Sub-base mounted valve is well suited for in-panel valve piloting applications
  • High flow rate, compact size, and optional mounting plate enable efficient use of cabinet space
  • Dual three-way version enables placement of two, three-way valves in the space of a four-way valve
  • Compatible with AVENTICS Series G3 and 580 electronic fieldbus platforms
  • 580 CHARM node is compatible with DeltaV™ distributed control system with electronic marshalling

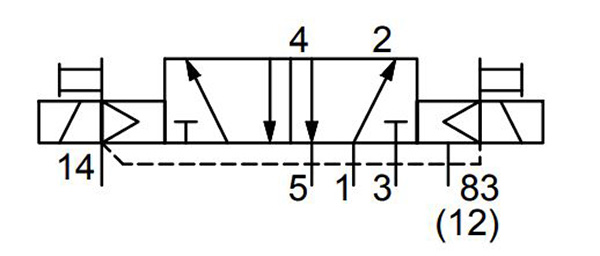

Dimension Drawing

valin ac-5vlv-0004 directional control valve series 501 drawing
