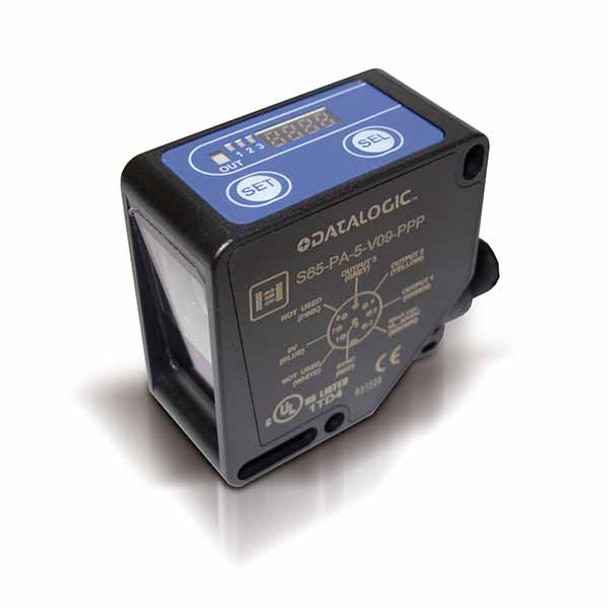

S65-PA-5-V19-NNN Datalogic Color Sensor

S65-PA-5-V19-NNN
Request for Quote
Not In Stock – Backorder Today
  • Refine Search: Photoelectric Laser & Ultrasonic
  • Product Type: Color Sensor
  • Product Family: S65-V Series
  • Manufacturers: Datalogic
  • Connection Size 1: M12 - 8 pole
  • Dimensions: 50 x 50 x 25mm
  • Housing Material: ABS
  • Indicator: LED
  • Lens Material: Glass
  • Max Input Power: 60mA
  • Max Operating Temperature: 131 F
  • Min Operating Temperature: 14 F
  • Output Type: 3 independent NPN outputs
  • Protection Rating: IP67
  • Response Time: 5 ms (norm) & 1 ms (fast)
  • Sensing Distance: 5-45mm
  • Supply Voltage Range: 10-30 VDC
  • Switching Frequency: 500 Hz
  • Weight: 0.22 lb
S65-PA-5-V19-NNN Datalogic Color Sensor, 10-30VDC supply voltage, 60mA max consumption, 2 push button setting w/4 digit display indicator, 3 independent NPN outputs, 5-45mm op distance, M12 - 8 pole connector, ABS housing w/glass lens
  • Product Description
  • Dimension Drawing
S65-PA-5-V19-NNN The S65-V colour sensors offer the best performances for colour detection in a standard 50x50x25 mm compact housing. The S65-V0 model, thanks to a good response time of only 340 µs, results to be particularly suitable for automatic packaging applications where high speed and colour mark detection are necessary. The S65-V1 model increases the chromatic sensitivity of s65-v0 towards dark colours. the sensors can memorise and recognise 3 colours on 3 independent channels. The c (chromaticity) or c+I (chromaticity and intensity) detection algorithm and the tolerance level can be chosen for each colour. The auxiliary functions include keylock and synchronisation with external events through a specific input. The control panel presents two setting push-buttons, outputs Leds and a 4-digit display for functioning messages and sensor configuration. complete remote control is possible for the version with the rs485 serial interface, which in the S65-V1 sensor can also receive rgb chromatic information.
datalogic s65 sensor dimensions
