IAI Intelligent Actuator ISB-SXM Series Electric Linear Actuators, 100mm, 8mm Ballscrew, Servo

VES-ISB-SXM-100-8-SCON
Request for Quote
  • Product Type: Electric Linear Actuators
  • Manufacturer: Intelligent Actuator
  • Customizability: Low
  • Availability: Medium (4-8 weeks)
  • Price: $$$
  • Stroke: 100 mm
  • Axial Force: 105 N
  • Feed Constant: 8 mm Ballscrew
  • Repeatability: +/-10 micron
  • Peak Speed: 480 mm/s
  • Frame Size: 90 mm
  • Drive Train: Ball Screw
  • Form Factor: Rodless
  • Motor: Servo
  • Product Family: ISB Series
IAI Intelligent Actuator ISB-SXM Series Electric Linear Actuators, 100mm, 8mm Ballscrew, Servo, controller included, 27 kg, +/-10 micron repeatability, 480mm/s peak speed. Application details need to be reviewed to ensure performance.
QTY

Contact Our Motion Control & Automation Experts

Contact our experts to answer questions or help you with your application needs.

Services

  • Control & Automation Engineering
  • Control Panel Services
  • Control System Design
  • Machine Vision Services
  • Maint/Repair Service Contracts
  • PLC Services
  • Rexroth Indramat Repair Center

Product Description

The ISB-SXM series is a single-axis robot that is part of a much larger family offering a wide variety of models, loading capabilities and stroke lengths with numerous controller options allowing for both centralized and distributed control. Gateway and hub units provide various networking and control architecture options. The battery-less high-resolution absolute encoder is an option on most models. Regular and higher precision version are available as are cleanroom and dust/splash-proof units.

Options available:

  • Strokes up to 2,500 mm
  • Speeds up to 2.5 m/sec
  • Loads up to 150 kg
  • Incremental or battery-less absolute encoder
  • Cleanroom specification
  • Dust/Splash-Proof specification

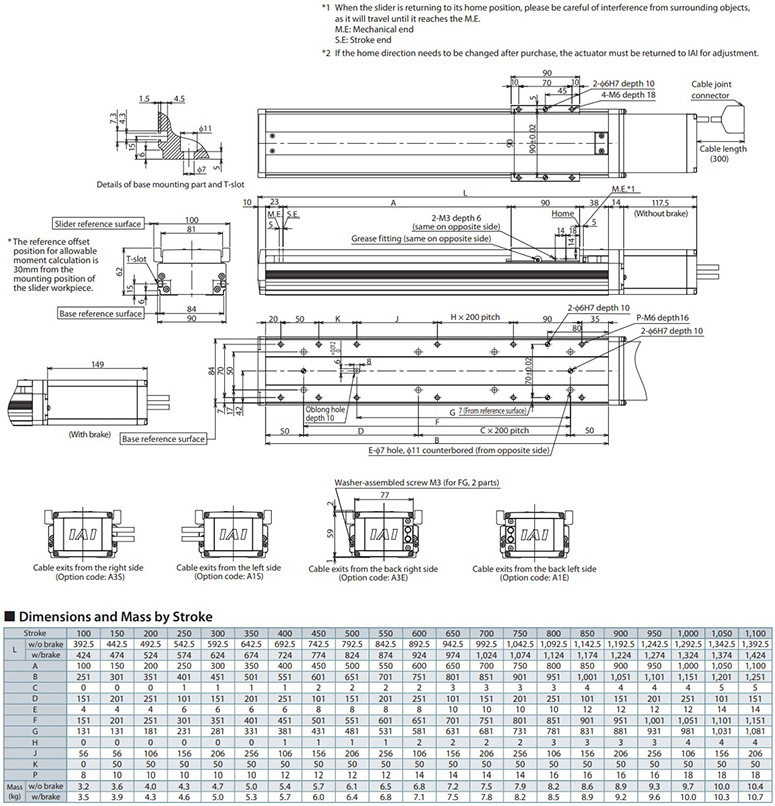

Dimension Drawing

iai isb-sxm actuator dimensions
